In Stock: 208

Can ship immediately

Pricing:
  • 1$2.24
  • 10$2.005
  • 100$1.6515
  • 500$1.3055
  • 1,000$1.12069
  • 5,000$1.02239
  • 10,000$0.98306

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Discontinued at Digi-Key
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.720" (18.29mm)
  • Overall Contact Length:1.050" (26.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


DF63M-2P-3.96DSA(01)

CONN HEADER VERT 2POS 3.96MM

  • 1: $2.26000
  • 200: $1.65262

4-103185-0-23

CONN HEADER VERT 23POS 2.54MM

4-103185-0-23 Datasheet
  • 1: $2.24000
  • 10: $2.03656
  • 25: $1.91147

4-103321-0-29

CONN HEADER VERT 29POS 2.54MM

4-103321-0-29 Datasheet
  • 1: $2.24000
  • 10: $2.02785
  • 25: $1.90357

4-103240-0-11

CONN HEADER VERT 22POS 2.54MM

4-103240-0-11 Datasheet
  • 1: $2.24000
  • 10: $2.03440
  • 25: $1.90974

4-103328-0-20

CONN HEADER VERT 40POS 2.54MM

4-103328-0-20 Datasheet
  • 1: $2.24000
  • 10: $2.03440
  • 25: $1.90974

0010897182

CONN HEADER VERT 18POS 2.54MM

0010897182 Datasheet
  • 1: $2.24000
  • 10: $2.03500
  • 25: $1.91040

PEC18SBCN

CONN HEADER R/A 18POS 2.54MM

PEC18SBCN Datasheet
  • 1: $2.24000
  • 10: $2.02900
  • 25: $1.90440

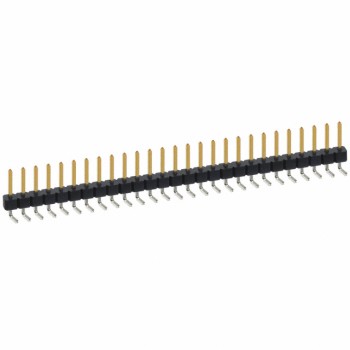

PBC27SBAN
