In Stock: 132

Can ship immediately

Pricing:
  • 1$2.24199
  • 1,000$2.24199

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:74
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:150V

Related Products


3-2842274-4

34P,2MM,SHRD HDR,DRVT,SMD,0.1AU,

  • 1: $2.24235

2-2842276-8

28P,2MM,SHRD HDR,DRVT,SMD,0.76AU

  • 1: $2.24275

91269-106LF

CONN HEADER R/A 6POS 2MM

91269-106LF Datasheet
  • 1: $2.24315
  • 1000: $2.07423

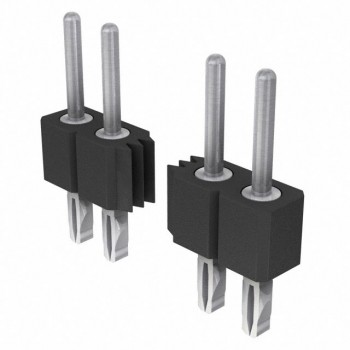

800-80-020-65-001101
