008261163210806

KYOCERA Corporation
In Stock: 130

Can ship immediately

Pricing:
  • 1$2.2475

Quote It

Technical Details

  • Series:8261, Kyocera
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:-
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.413" (10.49mm)
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.94µin (0.100µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3A per Contact
  • Voltage Rating:250VAC/DC

Related Products


350-80-128-00-019101

CONN HEADER VERT 28POS 2.54MM

350-80-128-00-019101 Datasheet
  • 1: $2.24770
  • 400: $2.06993

0022282245

CONN HEADER R/A 24POS 2.54MM

0022282245 Datasheet
  • 1: $2.24798
  • 1500: $2.24798

5-794681-0

CONN HEADER VERT 20POS 3MM

5-794681-0 Datasheet
  • 1: $2.24820
  • 1144: $2.24820

4-647050-2

CONN HEADER VERT 12POS 2.54MM

4-647050-2 Datasheet
  • 1: $2.24824
  • 1000: $1.94652

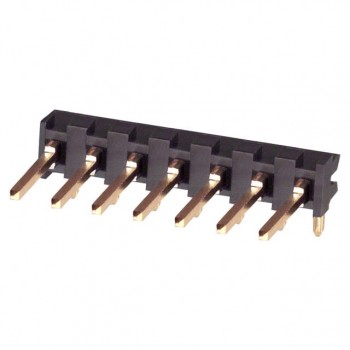

87232-7

CONN HEADER R/A 7POS 2.54MM

87232-7 Datasheet
  • 1: $2.24843
  • 750: $2.08495

45210-500230

CONN HEADER R/A 10POS 1.27MM

45210-500230 Datasheet
  • 1: $2.24910
  • 324: $2.14201

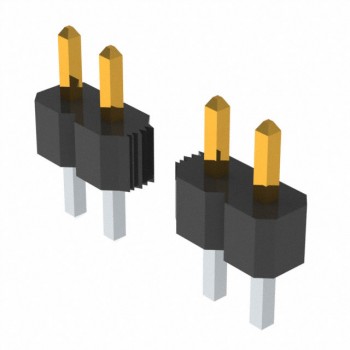

PBC36SZAN
