In Stock: 156

Can ship immediately

Pricing:
  • 1$2.25
  • 10$2.038
  • 25$1.9136
  • 50$1.8304
  • 100$1.7472
  • 250$1.5808
  • 500$1.456

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.320" (8.13mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PEC12DADN

CONN HEADER VERT 24POS 2.54MM

PEC12DADN Datasheet
  • 1: $2.25000
  • 10: $2.03800
  • 25: $1.91360

GEC20SABN-M30

CONN HEADER SMD 20POS 2.54MM

GEC20SABN-M30 Datasheet
  • 1: $2.25000
  • 10: $2.04200
  • 25: $1.91680

27631602RP2

CONN HEADER R/A 16POS 2MM

27631602RP2 Datasheet
  • 1: $2.25000
  • 10: $2.04596
  • 25: $1.92132

9-146276-0-17

CONN HEADER VERT 17POS 2.54MM

9-146276-0-17 Datasheet
  • 1: $2.25000
  • 10: $2.04663
  • 25: $1.92072

9-103326-0-11

CONN HEADER R/A 22POS 2.54MM

9-103326-0-11 Datasheet
  • 1: $2.25000
  • 10: $2.03906
  • 25: $1.91423

009090030111805+

WIRE TO BOARD

  • 1: $2.25000

95293-401B09LF

CONN HEADER SMD 9POS 2.54MM

95293-401B09LF Datasheet
  • 1: $2.25147
  • 624: $2.08183

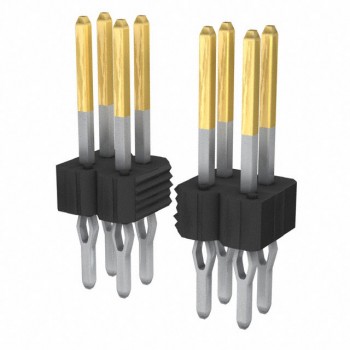

10077239-116LF
