In Stock: 106

Can ship immediately

Pricing:
  • 1$2.25381
  • 210$2.25381

Quote It

Technical Details

  • Series:Minitek® Pwr 4.2
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.386" (9.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600V

Related Products


DF11FZ-32DP-2V(20)

CONN HEADER VERT 32POS 2MM

DF11FZ-32DP-2V(20) Datasheet
  • 1: $2.25417

800-80-032-40-001101

CONN HEADER SMD R/A 32POS 2.54MM

800-80-032-40-001101 Datasheet
  • 1: $2.25436
  • 250: $2.07612

3-966140-4

MESSERLEISTE 9P

  • 1: $2.25443

350-10-118-00-206101

CONN HEADER SMD R/A 18POS 2.54MM

350-10-118-00-206101 Datasheet
  • 1: $2.25452
  • 230: $2.25048

350-10-118-00-106101

CONN HEADER SMD 18POS 2.54MM

350-10-118-00-106101 Datasheet
  • 1: $2.25453
  • 400: $1.96918

860-80-035-10-001101

CONN HEADER VERT 35POS 1MM

  • 1: $2.25519
  • 140: $2.25519

95278-401B38LF

CONN HEADER SMD 38POS 2.54MM

95278-401B38LF Datasheet
  • 1: $2.25522
  • 180: $2.08522

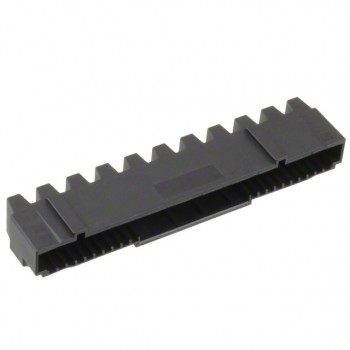

1-2229803-1
