0757571261

Woodhead - Molex
In Stock: 116

Can ship immediately

Pricing:
  • 1$2.25606
  • 1,400$2.25606

Quote It

Technical Details

  • Series:MX150 75757
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Blade
  • Pitch - Mating:0.138" (3.50mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.236" (6.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.441" (11.20mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.738" (18.75mm)
  • Insulation Height:0.177" (4.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:2.00µin (0.051µm)
  • Contact Finish - Post:Tin
  • Contact Material:Cartridge Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


3-644984-1

CONN HEADER VERT 11POS 3.96MM

3-644984-1 Datasheet
  • 1: $2.25620
  • 500: $2.25620

0757571102

CONN HEADER VERT 20POS 3.5MM

0757571102 Datasheet
  • 1: $2.25620
  • 1080: $2.25620

860-10-015-40-001101

CONN HEADER SMD R/A 15POS 1MM

860-10-015-40-001101 Datasheet
  • 1: $2.25628
  • 230: $2.25230

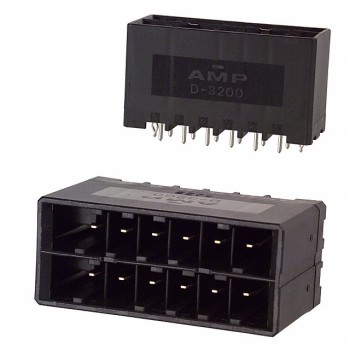

3-917658-2
