929836-09-13

3M
In Stock: 143

Can ship immediately

Pricing:
  • 1$2.26
  • 10$2.047
  • 25$1.9216
  • 50$1.838
  • 100$1.7545
  • 250$1.5874
  • 500$1.46208

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.145" (3.68mm)
  • Overall Contact Length:0.480" (12.19mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


929836-02-13

CONN HEADER VERT 26POS 2.54MM

929836-02-13 Datasheet
  • 1: $2.26000
  • 10: $2.04700
  • 25: $1.92160

929836-08-13

CONN HEADER VERT 26POS 2.54MM

929836-08-13 Datasheet
  • 1: $2.26000
  • 10: $2.04700
  • 25: $1.92160

929836-05-13

CONN HEADER VERT 26POS 2.54MM

929836-05-13 Datasheet
  • 1: $2.26000
  • 10: $2.04700
  • 25: $1.92160

929835-01-32

CONN HEADER R/A 32POS 2.54MM

929835-01-32 Datasheet
  • 1: $2.26000
  • 10: $2.04900
  • 25: $1.92360

4-103741-0-34

CONN HEADER VERT 34POS 2.54MM

4-103741-0-34 Datasheet
  • 1: $2.26000
  • 10: $2.05022
  • 25: $1.92478

4-103777-0-21

CONN HEADER VERT 42POS 2.54MM

4-103777-0-21 Datasheet
  • 1: $2.26000
  • 10: $2.04914
  • 25: $1.92392

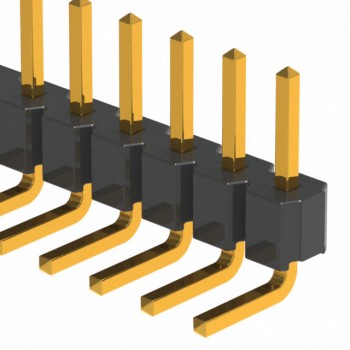

NRPN301PARN-RC

CONN HEADER R/A 30POS 2MM

NRPN301PARN-RC Datasheet
  • 1: $2.26000
  • 10: $2.04600
  • 25: $1.92080

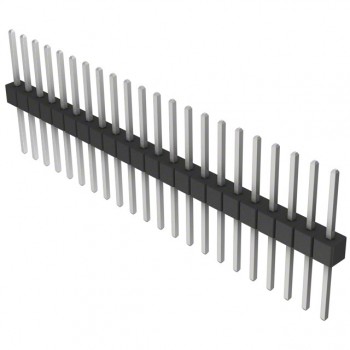

PEC22SFCN

CONN HEADER VERT 22POS 2.54MM

PEC22SFCN Datasheet
  • 1: $2.26000
  • 10: $2.04800
  • 25: $1.92280

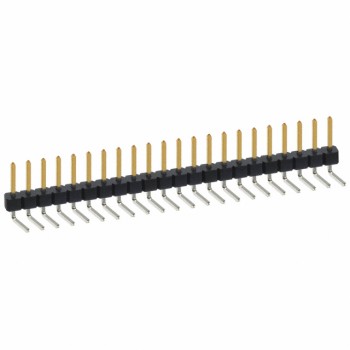

PBC22SBBN
