In Stock: 165

Can ship immediately

Pricing:
  • 1$2.27
  • 10$2.05489
  • 25$1.92928
  • 50$1.8454
  • 100$1.76163
  • 250$1.5938
  • 500$1.468

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.533" (13.55mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products

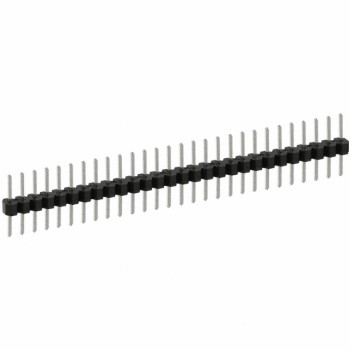

PEC28SABN

CONN HEADER VERT 28POS 2.54MM

PEC28SABN Datasheet
  • 1: $2.27000
  • 10: $2.05800
  • 25: $1.93200

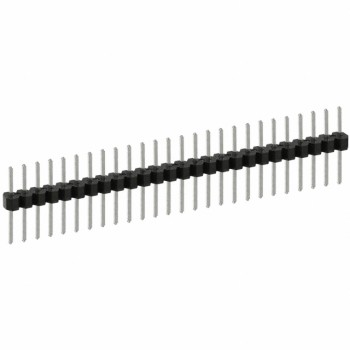

PEC26SACN

CONN HEADER VERT 26POS 2.54MM

PEC26SACN Datasheet
  • 1: $2.27000
  • 10: $2.06000
  • 25: $1.93360

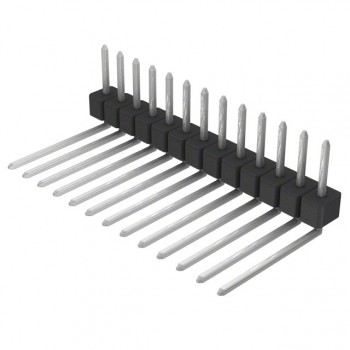

PEC13SBEN

CONN HEADER R/A 13POS 2.54MM

PEC13SBEN Datasheet
  • 1: $2.27000
  • 10: $2.06000
  • 25: $1.93360

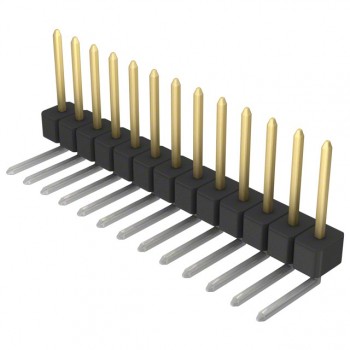

PBC13SGBN

CONN HEADER R/A 13POS 2.54MM

PBC13SGBN Datasheet
  • 1: $2.27000
  • 10: $2.06000
  • 25: $1.93360

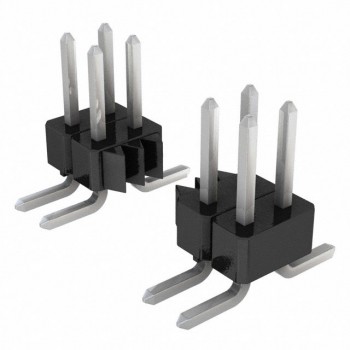

GEC14DABN-M30
