In Stock: 133

Can ship immediately

Pricing:
  • 1$2.27164

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.94µin (0.100µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


0702871081

CONN HEADER VERT 68POS 2.54MM

0702871081 Datasheet
  • 1: $2.27172
  • 1000: $2.27172

SMH100-LPPE-S34-SC-BK

CONN HEADER SMD 34POS 1MM

SMH100-LPPE-S34-SC-BK Datasheet
  • 1: $2.27201
  • 1000: $2.27201

SMH100-LPPE-S34-SD-BK

CONN HEADER SMD 34POS 1MM

SMH100-LPPE-S34-SD-BK Datasheet
  • 1: $2.27201
  • 1000: $2.27201

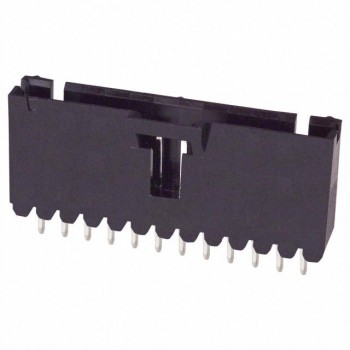

3-103639-0

CONN HEADER VERT 12POS 2.54MM

3-103639-0 Datasheet
  • 1: $2.27222
  • 16: $2.27222

77317-103-54LF

CONN HEADER R/A 54POS 2.54MM

77317-103-54LF Datasheet
  • 1: $2.27256
  • 500: $2.10120

77315-122-36LF

CONN HEADER R/A 36POS 2.54MM

77315-122-36LF Datasheet
  • 1: $2.27256
  • 500: $2.10120

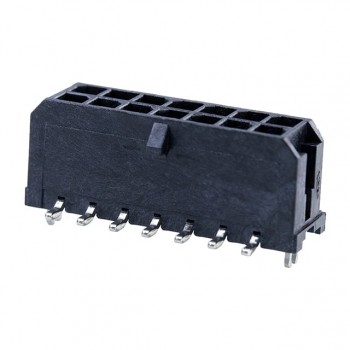

0430451416
