In Stock: 148

Can ship immediately

Pricing:
  • 1$2.28
  • 10$2.066
  • 25$1.9396
  • 50$1.8554
  • 100$1.771
  • 250$1.60232
  • 500$1.47582

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.320" (8.13mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PEC15SGBN

CONN HEADER R/A 15POS 2.54MM

PEC15SGBN Datasheet
  • 1: $2.28000
  • 10: $2.07000
  • 25: $1.94360

PBC16SBCN

CONN HEADER R/A 16POS 2.54MM

PBC16SBCN Datasheet
  • 1: $2.28000
  • 10: $2.06500
  • 25: $1.93800

PEC27DAAN

CONN HEADER VERT 54POS 2.54MM

PEC27DAAN Datasheet
  • 1: $2.28000
  • 10: $2.07300
  • 25: $1.94600

PBC15DABN

CONN HEADER VERT 30POS 2.54MM

PBC15DABN Datasheet
  • 1: $2.28000
  • 10: $2.07000
  • 25: $1.94360

PEC13DBBN

CONN HEADER R/A 26POS 2.54MM

PEC13DBBN Datasheet
  • 1: $2.28000
  • 10: $2.07000
  • 25: $1.94360

GBC13SBSN-M89

CONN HEADER SMD R/A 13POS 2.54MM

GBC13SBSN-M89 Datasheet
  • 1: $2.28000
  • 10: $2.07000
  • 25: $1.94360

GEC17SGSN-M89

CONN HEADER SMD R/A 17POS 2.54MM

GEC17SGSN-M89 Datasheet
  • 1: $2.28000
  • 10: $2.06900
  • 25: $1.94200

9-103325-0-12

CONN HEADER R/A 12POS 2.54MM

9-103325-0-12 Datasheet
  • 1: $2.28000
  • 10: $2.07263
  • 25: $1.94560

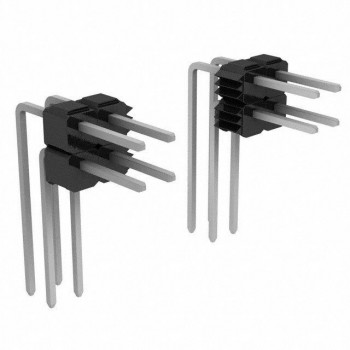

929838-02-18-RK
