In Stock: 113

Can ship immediately

Pricing:
  • 1$2.28973
  • 900$2.1583

Quote It

Technical Details

  • Series:AMPMODU MTE
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.535" (13.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


1-103906-5

CONN HEADER R/A 16POS 2.54MM

1-103906-5 Datasheet
  • 1: $2.28997
  • 864: $2.15852

0022284353

CONN HEADER VERT 35POS 2.54MM

0022284353 Datasheet
  • 1: $2.29000
  • 10: $2.08100
  • 25: $1.95360

0022288342

CONN HEADER R/A 34POS 2.54MM

0022288342 Datasheet
  • 1: $2.29000
  • 10: $2.07400
  • 25: $1.94680

PBC31SAAN

CONN HEADER VERT 31POS 2.54MM

PBC31SAAN Datasheet
  • 1: $2.29000
  • 10: $2.07600
  • 25: $1.94880

PBC24SABN

CONN HEADER VERT 24POS 2.54MM

PBC24SABN Datasheet
  • 1: $2.29000
  • 10: $2.07800
  • 25: $1.95040

PBC31SFAN

CONN HEADER VERT 31POS 2.54MM

PBC31SFAN Datasheet
  • 1: $2.29000
  • 10: $2.07600
  • 25: $1.94880

PBC20SFBN

CONN HEADER VERT 20POS 2.54MM

PBC20SFBN Datasheet
  • 1: $2.29000
  • 10: $2.07400
  • 25: $1.94720

PEC33SBAN

CONN HEADER R/A 33POS 2.54MM

PEC33SBAN Datasheet
  • 1: $2.29000
  • 10: $2.07500
  • 25: $1.94800

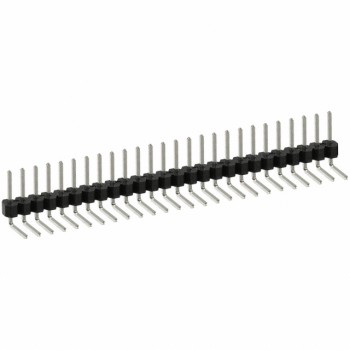

PEC26SBBN

CONN HEADER R/A 26POS 2.54MM

PEC26SBBN Datasheet
  • 1: $2.29000
  • 10: $2.08100
  • 25: $1.95360

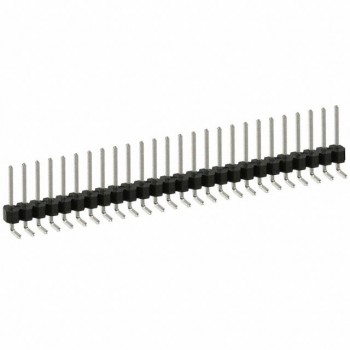

PEC26SGAN
