800-10-013-10-001000

Mill-Max
In Stock: 138

Can ship immediately

Pricing:
  • 1$2.3
  • 10$2.0845
  • 25$1.95686
  • 50$1.8717
  • 100$1.78664
  • 250$1.61651
  • 500$1.48887

Quote It

Technical Details

  • Series:800
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:13
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.195" (4.95mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.438" (11.12mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


929838-04-13

CONN HEADER R/A 26POS 2.54MM

929838-04-13 Datasheet
  • 1: $2.30000
  • 10: $2.08900
  • 25: $1.96160

4-103322-0-19

CONN HEADER VERT 38POS 2.54MM

4-103322-0-19 Datasheet
  • 1: $2.30000
  • 10: $2.08620
  • 25: $1.95792

PBC20SAEN

CONN HEADER VERT 20POS 2.54MM

PBC20SAEN Datasheet
  • 1: $2.30000
  • 10: $2.09100
  • 25: $1.96280

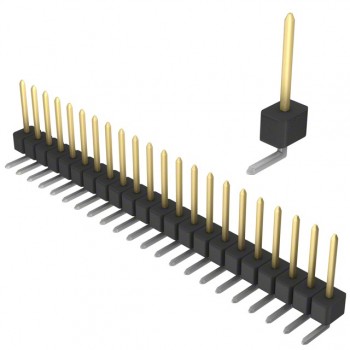

PBC22SGAN
