In Stock: 165

Can ship immediately

Pricing:
  • 1$2.42012
  • 570$2.2377

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:32
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.177" (4.50mm)
  • Overall Contact Length:0.605" (15.38mm)
  • Insulation Height:0.550" (13.97mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Resin
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


98424-F52-30ALF

CONN HEADER SMD 30POS 2MM

98424-F52-30ALF Datasheet
  • 1: $2.42012
  • 600: $2.23772

10079528-134ALF

CONN HEADER VERT 34POS 2.54MM

10079528-134ALF Datasheet
  • 1: $2.42012
  • 600: $2.23772

10056844-134ALF

CONN HEADER VERT 34POS 2.54MM

  • 1: $2.42012
  • 600: $2.23772

350-80-147-01-714101

CONN HEADER VERT 24POS 5.08MM

350-80-147-01-714101 Datasheet
  • 1: $2.42022
  • 230: $2.22865

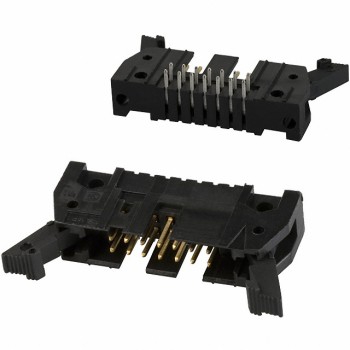

499913-2

CONN HEADER R/A 14POS 2.54MM

499913-2 Datasheet
  • 1: $2.42134
  • 576: $2.33889

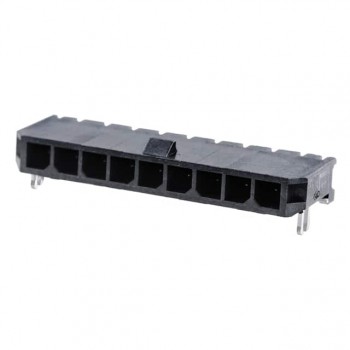

0436500911

CONN HEADER SMD R/A 9POS 3MM

0436500911 Datasheet
  • 1: $2.42144
  • 1600: $2.42144

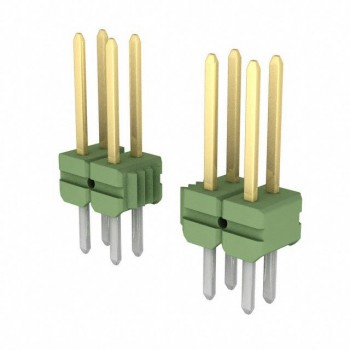

2-825440-0

CONN HEADER VERT 40POS 2.54MM

2-825440-0 Datasheet
  • 1: $2.42171
  • 2400: $2.35118

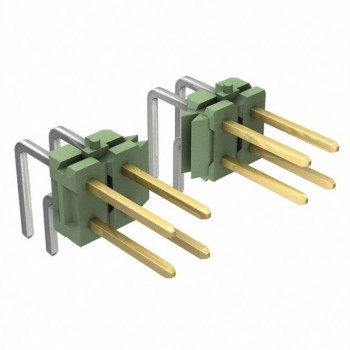

2-825457-0
