DF3E-10P-2H(54)

Hirose
In Stock: 172

Can ship immediately

Pricing:
  • 1$2.42412
  • 10$2.20136
  • 25$2.06659
  • 50$1.97673
  • 100$1.88688
  • 250$1.70718
  • 500$1.5724

Quote It

Technical Details

  • Series:DF3
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


4-647108-2

CONN HEADER SMD 12POS 2.54MM

4-647108-2 Datasheet
  • 1: $2.42418
  • 1000: $2.20380

350-10-129-01-609101

CONN HEADER VERT 15POS 5.08MM

350-10-129-01-609101 Datasheet
  • 1: $2.42421
  • 240: $2.11738

0025022014

CONN HEADER VERT 14POS 2.54MM

0025022014 Datasheet
  • 1: $2.42438
  • 1980: $2.42438

0702871210

CONN HEADER VERT 32POS 2.54MM

0702871210 Datasheet
  • 1: $2.42438
  • 1575: $2.42438

0713492009

CONN HEADER SMD 22POS 2.54MM

0713492009 Datasheet
  • 1: $2.42452
  • 1620: $2.42452

4-794635-0

CONN HEADER SMD 10POS 3MM

4-794635-0 Datasheet
  • 1: $2.42470
  • 525: $2.42470

0440680048

CONN HEADER VERT 10POS 4.2MM

0440680048 Datasheet
  • 1: $2.42498
  • 1200: $2.42498

1511200314

CONN HEADER SMD R/A 14POS 2MM

1511200314 Datasheet
  • 1: $2.42514
  • 3600: $2.42514

0702472052

CONN HEADER R/A 20POS 2.54MM

  • 1: $2.42516

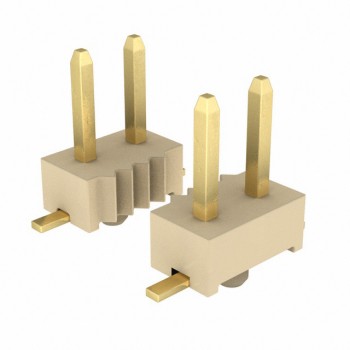

A3A-24PA-2SV(71)
