0417910861

Woodhead - Molex
In Stock: 118

Can ship immediately

Pricing:
  • 1$2.4262
  • 1,000$2.4262

Quote It

Technical Details

  • Series:KK396, 41791
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.450" (11.43mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:0.720" (18.29mm)
  • Insulation Height:0.446" (11.33mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


4-2842166-6

46P,2MM,SHRD HDR,DRRT,0.1AU,TB

  • 1: $2.42675

4-647628-2

CONN HEADER R/A 12POS 2.54MM

4-647628-2 Datasheet
  • 1: $2.42696
  • 250: $2.20632

0015912620

CONN HEADER SMD 62POS 2.54MM

0015912620 Datasheet
  • 1: $2.42701
  • 1296: $2.42701

6-146253-0

CONN HEADER VERT 20POS 2.54MM

6-146253-0 Datasheet
  • 1: $2.42707
  • 4000: $2.24417

350-10-123-00-001101

CONN HEADER VERT 23POS 2.54MM

350-10-123-00-001101 Datasheet
  • 1: $2.42760
  • 210: $2.42319

892-70-054-20-001101

CONN HEADER R/A 54POS 2.54MM

892-70-054-20-001101 Datasheet
  • 1: $2.42800
  • 230: $2.20122

800-V3-013-22-002101

CONN HEADER R/A 13POS 2.54MM

800-V3-013-22-002101 Datasheet
  • 1: $2.42842
  • 240: $2.12100

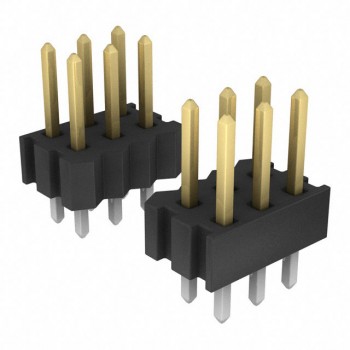

103817-1
