In Stock: 179

Can ship immediately

Pricing:
  • 1$2.44
  • 10$2.21769
  • 25$2.08213
  • 50$1.99169
  • 100$1.90103
  • 250$1.72002
  • 500$1.58422

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:25
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.440" (11.18mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


4-103240-0-12

CONN HEADER VERT 24POS 2.54MM

4-103240-0-12 Datasheet
  • 1: $2.44000
  • 10: $2.21435
  • 25: $2.07897

PEC28SACN

CONN HEADER VERT 28POS 2.54MM

PEC28SACN Datasheet
  • 1: $2.44000
  • 10: $2.21800
  • 25: $2.08240

PBC33SAAN

CONN HEADER VERT 33POS 2.54MM

PBC33SAAN Datasheet
  • 1: $2.44000
  • 10: $2.21000
  • 25: $2.07480

PBC33SFAN

CONN HEADER VERT 33POS 2.54MM

PBC33SFAN Datasheet
  • 1: $2.44000
  • 10: $2.21000
  • 25: $2.07480

PEC14SBEN

CONN HEADER R/A 14POS 2.54MM

PEC14SBEN Datasheet
  • 1: $2.44000
  • 10: $2.21800
  • 25: $2.08240

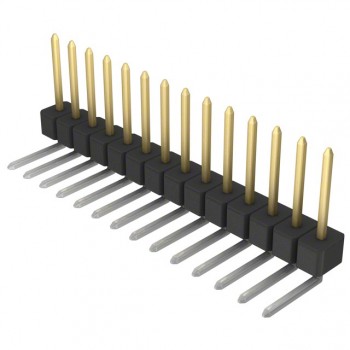

PBC14SGBN
