0740950016

Woodhead - Molex
In Stock: 159

Can ship immediately

Pricing:
  • 1$2.44369
  • 1,152$2.44369

Quote It

Technical Details

  • Series:SL 74095
  • Package:Tube
  • Part Status:Last Time Buy
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.174" (4.42mm)
  • Overall Contact Length:0.583" (14.82mm)
  • Insulation Height:0.465" (11.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


852-10-020-20-002101

CONN HEADER R/A 20POS 1.27MM

852-10-020-20-002101 Datasheet
  • 1: $2.44375
  • 224: $2.44375

0010897203

CONN HEADER VERT 20POS 2.54MM

0010897203 Datasheet
  • 1: $2.44384
  • 2000: $2.44384

66429-367LF

QKE HDR

  • 1: $2.44435

890-18-023-10-004101

CONN HEADER VERT 23POS 2.54MM

890-18-023-10-004101 Datasheet
  • 1: $2.44442
  • 240: $2.19313

0436500714

CONN HEADER SMD R/A 7POS 3MM

0436500714 Datasheet
  • 1: $2.44454
  • 2240: $2.44454

2-103635-4

CONN HEADER R/A 25POS 2.54MM

2-103635-4 Datasheet
  • 1: $2.44457
  • 672: $2.30424

6-146254-7

CONN HEADER VERT 34POS 2.54MM

6-146254-7 Datasheet
  • 1: $2.44470
  • 600: $2.26048

0010977286

CONN HEADER VERT 28POS 2.54MM

0010977286 Datasheet
  • 1: $2.44482
  • 1500: $2.44482

0713491070

CONN HEADER SMD 8POS 2.54MM

0713491070 Datasheet
  • 1: $2.44485
  • 1440: $2.44485

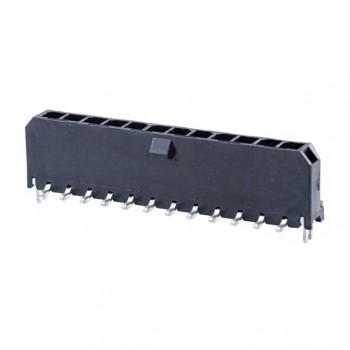

0436501222
