892-80-046-10-004101

Preci-Dip
In Stock: 172

Can ship immediately

Pricing:
  • 1$2.44978
  • 230$2.25613

Quote It

Technical Details

  • Series:892
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:46
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.587" (14.91mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.805" (20.44mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


0422271063

CONN HEADER VERT 28POS 2.54MM

0422271063 Datasheet
  • 1: $2.44986
  • 1500: $2.44986

PEC18SAHN

CONN HEADER VERT 18POS 2.54MM

PEC18SAHN Datasheet
  • 1: $2.45000
  • 10: $2.22000
  • 25: $2.08400

PEC29DAAN

CONN HEADER VERT 58POS 2.54MM

PEC29DAAN Datasheet
  • 1: $2.45000
  • 10: $2.22600
  • 25: $2.09000

PEC09DAGN

CONN HEADER VERT 18POS 2.54MM

PEC09DAGN Datasheet
  • 1: $2.45000
  • 10: $2.22700
  • 25: $2.09080

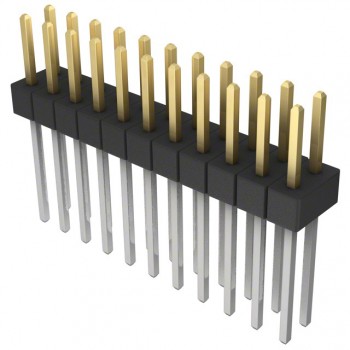

PBC11DADN
