0901310777

Woodhead - Molex
In Stock: 107

Can ship immediately

Pricing:
  • 1$2.45525
  • 3,150$2.45524

Quote It

Technical Details

  • Series:C-Grid III 90131
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.478" (12.15mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


AWH 64G-0202-T

CONN HEADER VERT 64POS 2.54MM

AWH 64G-0202-T Datasheet
  • 1: $2.45525
  • 40: $2.45525

S02B-F32SK-GGXR(LF)(AU)

CONN HEADER R/A 2POS 3.81MM

S02B-F32SK-GGXR(LF)(AU) Datasheet
  • 1: $2.45533
  • 180: $2.45533

0713492071

CONN HEADER SMD 10POS 2.54MM

0713492071 Datasheet
  • 1: $2.45558
  • 1458: $2.45558

850-80-020-40-001101

CONN HEADER SMD R/A 20POS 1.27MM

850-80-020-40-001101 Datasheet
  • 1: $2.45561
  • 230: $2.26139

10119109-530007LF

B/S II HDR D/R STR

  • 1: $2.45566

10118615-526003LF

B/S II HDR S/R STR

  • 1: $2.45566

0022282272

CONN HEADER R/A 27POS 2.54MM

0022282272 Datasheet
  • 1: $2.45602
  • 1500: $2.45602

0022282278

CONN HEADER R/A 27POS 2.54MM

0022282278 Datasheet
  • 1: $2.45602
  • 1500: $2.45602

850-80-029-20-001101

CONN HEADER R/A 29POS 1.27MM

850-80-029-20-001101 Datasheet
  • 1: $2.45665
  • 160: $2.45665

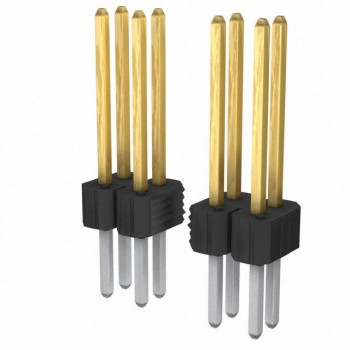

79821-150HLF
