929710-10-10

3M
In Stock: 180

Can ship immediately

Pricing:
  • 1$2.46
  • 10$2.228
  • 25$2.0916
  • 50$2.0006
  • 100$1.9096
  • 250$1.72772
  • 500$1.59132

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Discontinued at Digi-Key
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.175" (4.45mm)
  • Overall Contact Length:0.593" (15.07mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


929836-03-19-RK

CONN HEADER VERT 38POS 2.54MM

929836-03-19-RK Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

4-103741-0-37

CONN HEADER VERT 37POS 2.54MM

4-103741-0-37 Datasheet
  • 1: $2.46000
  • 10: $2.23676
  • 25: $2.09934

4-103328-0-22

CONN HEADER VERT 44POS 2.54MM

4-103328-0-22 Datasheet
  • 1: $2.46000
  • 10: $2.23126
  • 25: $2.09488

PEC19SAGN

CONN HEADER VERT 19POS 2.54MM

PEC19SAGN Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

PEC24SFCN

CONN HEADER VERT 24POS 2.54MM

PEC24SFCN Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

PBC16SAHN

CONN HEADER VERT 16POS 2.54MM

PBC16SAHN Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

PBC19SFDN

CONN HEADER VERT 19POS 2.54MM

PBC19SFDN Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

PBC24SBBN

CONN HEADER R/A 24POS 2.54MM

PBC24SBBN Datasheet
  • 1: $2.46000
  • 10: $2.23400
  • 25: $2.09760

PEC14DBBN

CONN HEADER R/A 28POS 2.54MM

PEC14DBBN Datasheet
  • 1: $2.46000
  • 10: $2.23000
  • 25: $2.09320

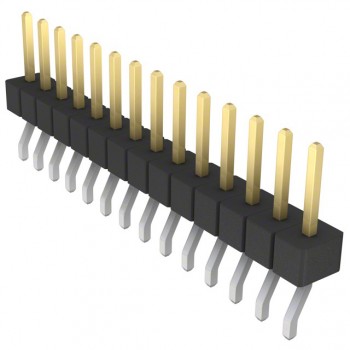

GBC14SBSN-M89
