929745-02-07-EU

3M
In Stock: 185

Can ship immediately

Pricing:
  • 1$2.47
  • 10$2.241
  • 25$2.1036
  • 50$2.0122
  • 100$1.9208
  • 250$1.73788
  • 500$1.60068

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.405" (10.29mm)
  • Overall Contact Length:-
  • Insulation Height:0.215" (5.45mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


2338-6221-TG

CONN HEADER VERT 38POS 2.54MM

2338-6221-TG Datasheet
  • 1: $2.47000
  • 10: $2.26417
  • 25: $2.13811

90122-0766

CONN HEADER R/A 12POS 2.54MM

90122-0766 Datasheet
  • 1: $2.47000
  • 10: $2.24000
  • 25: $2.10320

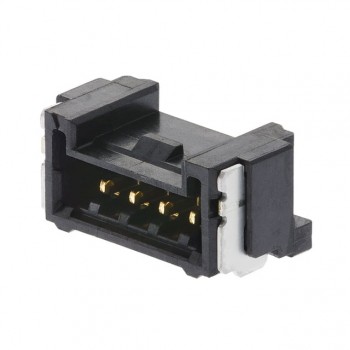

5054483691

1.25WB DL RA ASSY 36CKT BK G010

Call for price


1-102977-2

24 MODII HDR DRST B/A .100CL

  • 1: $2.47039

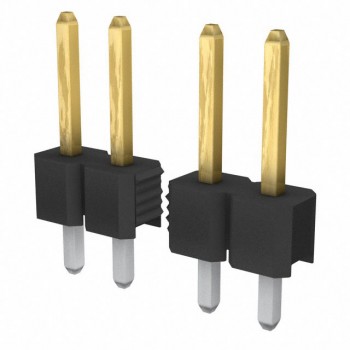

861400361YO6LF
