M80-5511042

Harwin
In Stock: 105

Can ship immediately

Pricing:
  • 1$2.4795
  • 1,001$2.4795

Quote It

Technical Details

  • Series:Datamate J-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.173" (4.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.218" (5.55mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Keying Slot, Mating Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A
  • Voltage Rating:120V

Related Products


1-2329463-6

DYNAMIC 1100D HDR ASSY V 32P XBL

  • 1: $2.47955

DF11GZ-40DP-2V(20)

CONN HEADER SMD 40POS 2MM

DF11GZ-40DP-2V(20) Datasheet
  • 1: $2.48000
  • 10: $2.25370
  • 100: $1.93130

929838-04-14

CONN HEADER R/A 28POS 2.54MM

929838-04-14 Datasheet
  • 1: $2.48000
  • 10: $2.25000
  • 25: $2.11240

929500-01-29

CONN HEADER R/A 29POS 2.54MM

929500-01-29 Datasheet
  • 1: $2.48000
  • 10: $2.25500
  • 25: $2.11680

929550-01-11-I

CONN HEADER R/A 11POS 2.54MM

929550-01-11-I Datasheet
  • 1: $2.48000
  • 10: $2.24900
  • 25: $2.11160

4-103239-0-17

CONN HEADER VERT 17POS 2.54MM

4-103239-0-17 Datasheet
  • 1: $2.48000
  • 10: $2.24933
  • 25: $2.11179

4-102972-0-24

CONN HEADER VERT 24POS 2.54MM

4-102972-0-24 Datasheet
  • 1: $2.48000
  • 10: $2.24602
  • 25: $2.10865

4-103321-0-32

CONN HEADER VERT 32POS 2.54MM

4-103321-0-32 Datasheet
  • 1: $2.48000
  • 10: $2.25041
  • 25: $2.11222

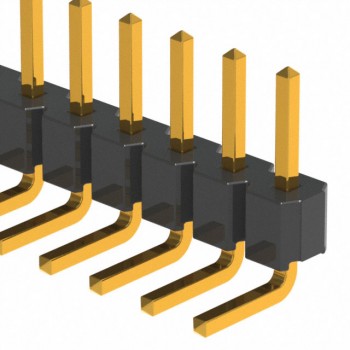

NRPN331PARN-RC

CONN HEADER R/A 33POS 2MM

NRPN331PARN-RC Datasheet
  • 1: $2.48000
  • 10: $2.25100
  • 25: $2.11320

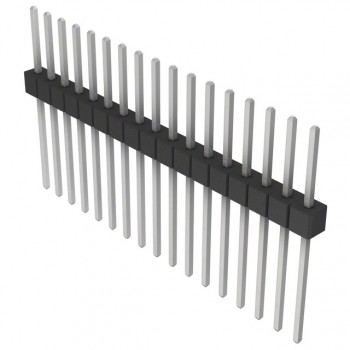

PEC17SFEN
