In Stock: 190

Can ship immediately

Pricing:
  • 1$2.61
  • 10$2.367
  • 25$2.222
  • 50$2.1252
  • 100$2.0286
  • 250$1.8354
  • 500$1.6905

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:42
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.100" (2.54mm)
  • Overall Contact Length:-
  • Insulation Height:0.240" (6.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


GBC20SABN-M30

CONN HEADER SMD 20POS 2.54MM

GBC20SABN-M30 Datasheet
  • 1: $2.61000
  • 10: $2.36800
  • 25: $2.22320

GEC21SGSN-M89

CONN HEADER SMD R/A 21POS 2.54MM

GEC21SGSN-M89 Datasheet
  • 1: $2.61000
  • 10: $2.50300
  • 25: $2.29480

GBC19SGSN-M89

CONN HEADER SMD R/A 19POS 2.54MM

GBC19SGSN-M89 Datasheet
  • 1: $2.61000
  • 10: $2.50800
  • 25: $2.29920

26632201RP2

CONN HEADER VERT 22POS 2MM

26632201RP2 Datasheet
  • 1: $2.61000
  • 10: $2.36435
  • 25: $2.21960

9-146280-0-23

CONN HEADER VERT 23POS 2.54MM

9-146280-0-23 Datasheet
  • 1: $2.61000
  • 10: $2.36400
  • 25: $2.21920

9-146261-0-10

CONN HEADER VERT 20POS 2.54MM

9-146261-0-10 Datasheet
  • 1: $2.61000
  • 10: $2.37283
  • 25: $2.22792

951123-7722-AR

CONN HEADER R/A 23POS 2MM

951123-7722-AR Datasheet
  • 1: $2.61000
  • 10: $2.38929
  • 25: $2.25614

951128-7622-AR

CONN HEADER R/A 28POS 2MM

951128-7622-AR Datasheet
  • 1: $2.61000
  • 10: $2.39296
  • 25: $2.25980

951137-8622-AR

CONN HEADER VERT 37POS 2MM

951137-8622-AR Datasheet
  • 1: $2.61000
  • 10: $2.39296
  • 25: $2.26053

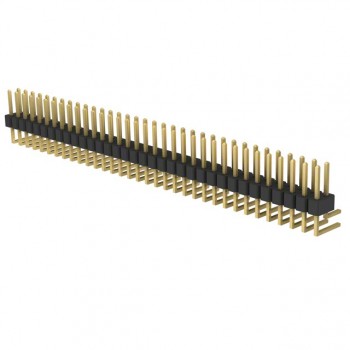

PRPC034DBAN-M71RC
