In Stock: 121

Can ship immediately

Pricing:
  • 1$2.62926
  • 500$2.62926

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:27
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:-
  • Contact Length - Mating:0.260" (6.60mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


0444321203

CONN HEADER VERT 12POS 3MM

0444321203 Datasheet
  • 1: $2.62929
  • 1092: $2.62929

350-80-131-01-666101

CONN HEADER VERT 31POS 2.54MM

350-80-131-01-666101 Datasheet
  • 1: $2.62962
  • 210: $2.42157

57102-G08-13LF

CONN HEADER VERT 26POS 2MM

57102-G08-13LF Datasheet
  • 1: $2.62990
  • 600: $2.43185

4-103185-0-27

CONN HEADER VERT 27POS 2.54MM

4-103185-0-27 Datasheet
  • 1: $2.63000
  • 10: $2.39081
  • 25: $2.24427

4-103327-0-38

CONN HEADER VERT 38POS 2.54MM

4-103327-0-38 Datasheet
  • 1: $2.63000
  • 10: $2.38540
  • 25: $2.23950

4-103321-0-34

CONN HEADER VERT 34POS 2.54MM

4-103321-0-34 Datasheet
  • 1: $2.63000
  • 10: $2.38973
  • 25: $2.24297

NRPN351PARN-RC

CONN HEADER R/A 35POS 2MM

NRPN351PARN-RC Datasheet
  • 1: $2.63000
  • 10: $2.38700
  • 25: $2.24120

PEC35SABN

CONN HEADER VERT 35POS 2.54MM

PEC35SABN Datasheet
  • 1: $2.63000
  • 10: $2.52000
  • 25: $2.31000

PEC23SAFN

CONN HEADER VERT 23POS 2.54MM

PEC23SAFN Datasheet
  • 1: $2.63000
  • 10: $2.52100
  • 25: $2.31080

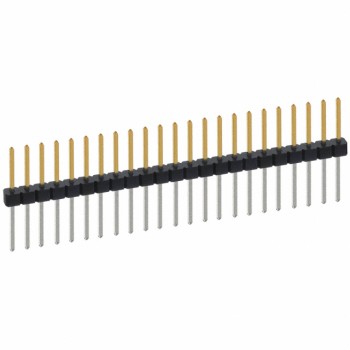

PBC23SFBN
