In Stock: 172

Can ship immediately

Pricing:
  • 1$2.65
  • 10$2.544
  • 25$2.332
  • 50$2.226
  • 100$2.12
  • 250$1.855
  • 500$1.802

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.230" (5.84mm)
  • Overall Contact Length:0.560" (14.22mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PBC23SAEN

CONN HEADER VERT 23POS 2.54MM

PBC23SAEN Datasheet
  • 1: $2.65000
  • 10: $2.40400
  • 25: $2.25720

PBC19SAFN

CONN HEADER VERT 19POS 2.54MM

PBC19SAFN Datasheet
  • 1: $2.65000
  • 10: $2.40500
  • 25: $2.25800

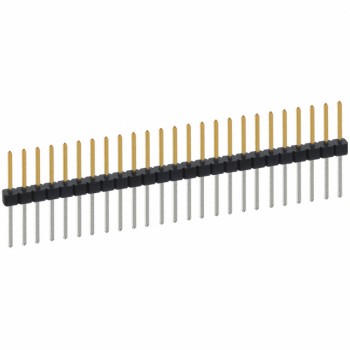

PBC25SFBN

CONN HEADER VERT 25POS 2.54MM

PBC25SFBN Datasheet
  • 1: $2.65000
  • 10: $2.54000
  • 25: $2.32840

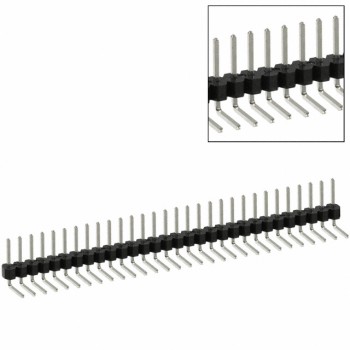

PEC30SBBN

CONN HEADER R/A 30POS 2.54MM

PEC30SBBN Datasheet
  • 1: $2.65000
  • 10: $2.40100
  • 25: $2.25400

PEC23SBCN

CONN HEADER R/A 23POS 2.54MM

PEC23SBCN Datasheet
  • 1: $2.65000
  • 10: $2.53900
  • 25: $2.32760

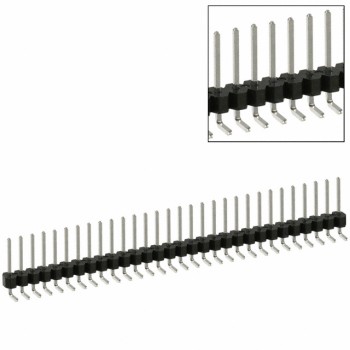

PEC30SGAN

CONN HEADER R/A 30POS 2.54MM

PEC30SGAN Datasheet
  • 1: $2.65000
  • 10: $2.40100
  • 25: $2.25400

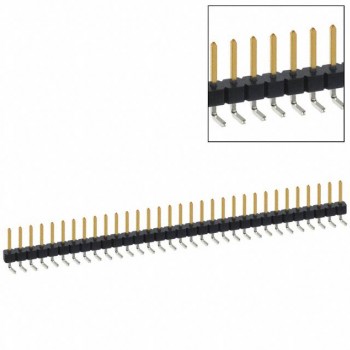

PBC32SBAN
