2344-6221-TG

3M
In Stock: 155

Can ship immediately

Pricing:
  • 1$2.65
  • 10$2.55199
  • 25$2.35959
  • 50$2.26339
  • 100$2.1671
  • 250$1.9263
  • 500$1.87814

Quote It

Technical Details

  • Series:2300
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:44
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.538" (13.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


929700-11-32-RK

CONN HEADER VERT 32POS 2.54MM

929700-11-32-RK Datasheet
  • 1: $2.65000
  • 10: $2.54000
  • 25: $2.32800

929700-06-32-RK

CONN HEADER VERT 32POS 2.54MM

929700-06-32-RK Datasheet
  • 1: $2.65000
  • 10: $2.54000
  • 25: $2.32800

929700-08-32-RK

CONN HEADER VERT 32POS 2.54MM

  • 1: $2.65000
  • 10: $2.54000
  • 25: $2.32800

HIF3MAW-14PA-2.54DS(63)

CONN HEADER R/A 14POS 2.54MM

  • 1: $2.65000

HIF3MAW-14PA-2.54DSA(63)

CONN HEADER VERT 14POS 2.54MM

  • 1: $2.65000

0436501113

CONN HEADER SMD R/A 11POS 3MM

0436501113 Datasheet
  • 1: $2.65034
  • 1600: $2.52406

802-80-038-20-001101

CONN HEADER R/A 38POS 2.54MM

802-80-038-20-001101 Datasheet
  • 1: $2.65036
  • 330: $2.44076

0741640134

CONN HEADER R/A 34POS 2.54MM

0741640134 Datasheet
  • 1: $2.65060
  • 1080: $2.65060

90516-025

MTK II RA HDR HTP

  • 1: $2.65103

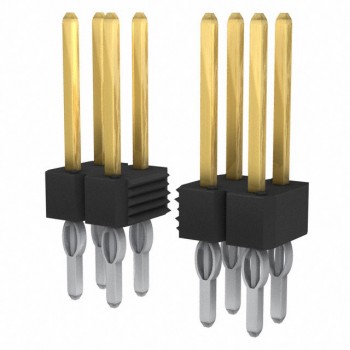

93690-105-50LF
