929665-05-07-I

3M
In Stock: 177

Can ship immediately

Pricing:
  • 1$2.66
  • 10$2.558
  • 25$2.3448
  • 50$2.2384
  • 100$2.1317
  • 250$1.86528
  • 500$1.81198

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.610" (15.49mm)
  • Overall Contact Length:0.945" (24.00mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


PEC31SADN

CONN HEADER VERT 31POS 2.54MM

PEC31SADN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34160

PEC28SFCN

CONN HEADER VERT 28POS 2.54MM

PEC28SFCN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34080

PBC17SFEN

CONN HEADER VERT 17POS 2.54MM

PBC17SFEN Datasheet
  • 1: $2.66000
  • 10: $2.55700
  • 25: $2.34360

PBC28SBBN

CONN HEADER R/A 28POS 2.54MM

PBC28SBBN Datasheet
  • 1: $2.66000
  • 10: $2.55400
  • 25: $2.34080

PEC34DAAN

CONN HEADER VERT 68POS 2.54MM

PEC34DAAN Datasheet
  • 1: $2.66000
  • 10: $2.55700
  • 25: $2.34360

PEC18DFBN

CONN HEADER VERT 36POS 2.54MM

PEC18DFBN Datasheet
  • 1: $2.66000
  • 10: $2.54900
  • 25: $2.33640

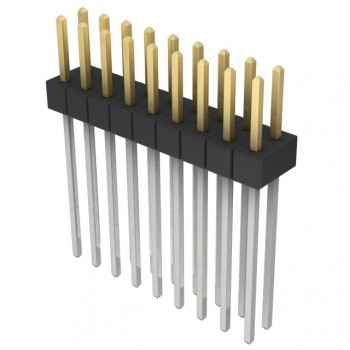

PBC09DAFN
