SBH51-LPPE-D18-ST-BK

Sullins Connector Solutions
In Stock: 101

Can ship immediately

Pricing:
  • 1$2.66903
  • 31$2.66903

Quote It

Technical Details

  • Series:SBH51
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:36
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.134" (3.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


0877593414

CONN HEADER SMD 34POS 2MM

0877593414 Datasheet
  • 1: $2.66945
  • 675: $2.59319

AWHW 40G-0102-T

CONN HEADER VERT 40POS 2.54MM

  • 1: $2.66945

0015916105

CONN HEADER SMD 10POS 2.54MM

0015916105 Datasheet
  • 1: $2.66963
  • 5520: $1.27853

929400-01-32

CONN HEADER VERT 32POS 2.54MM

929400-01-32 Datasheet
  • 1: $2.67000
  • 10: $2.56000
  • 25: $2.34680

4-103747-0-17

CONN HEADER VERT 17POS 2.54MM

4-103747-0-17 Datasheet
  • 1: $2.67000
  • 10: $2.42166
  • 25: $2.27358

4-103322-0-22

CONN HEADER VERT 44POS 2.54MM

4-103322-0-22 Datasheet
  • 1: $2.67000
  • 10: $2.42796
  • 25: $2.27883

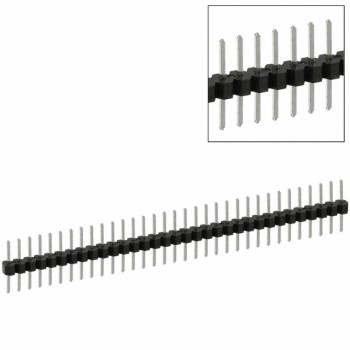

PEC33SABN

CONN HEADER VERT 33POS 2.54MM

PEC33SABN Datasheet
  • 1: $2.67000
  • 10: $2.42600
  • 25: $2.27720

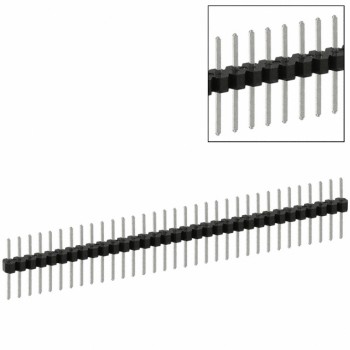

PEC33SACN

CONN HEADER VERT 33POS 2.54MM

PEC33SACN Datasheet
  • 1: $2.67000
  • 10: $2.56100
  • 25: $2.34760

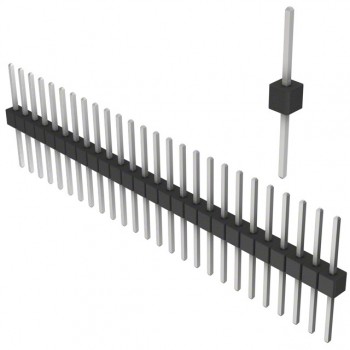

PEC26SFCN
