1511200318

Woodhead - Molex
In Stock: 137

Can ship immediately

Pricing:
  • 1$2.68421
  • 3,600$2.68421

Quote It

Technical Details

  • Series:Milli-Grid 151120
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.248" (6.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Glow Wire Compliant
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125V

Related Products


6-103672-9

CONN HEADER R/A 20POS 2.54MM

6-103672-9 Datasheet
  • 1: $2.68454
  • 720: $2.53043

852-80-020-30-002101

CONN HEADER SMD 20POS 1.27MM

852-80-020-30-002101 Datasheet
  • 1: $2.68462
  • 210: $2.47229

0702800625

CONN HEADER VERT 74POS 2.54MM

0702800625 Datasheet
  • 1: $2.68482
  • 1000: $2.68482

1054052204

CONN HEADER SMD R/A 4POS 2.5MM

1054052204 Datasheet
  • 1: $2.68497
  • 1000: $2.68497

104450-9

CONN HEADER VERT 10POS 2.54MM

104450-9 Datasheet
  • 1: $2.68527
  • 220: $2.53114

3-2373377-4

34P,2MM,SHRD HDR,DRVT,SMD,0.38AU

  • 1: $2.68588

71978-150LF

CONN HEADER R/A 50POS 2.54MM

71978-150LF Datasheet
  • 1: $2.68589
  • 360: $2.48342

57102-G06-23LF

CONN HEADER VERT 46POS 2MM

57102-G06-23LF Datasheet
  • 1: $2.68590
  • 400: $2.48343

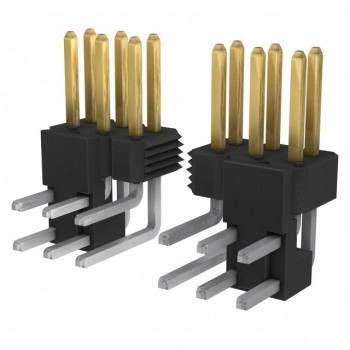

6170172C185515LF

CONN HEADER R/A 34POS 2.54MM

6170172C185515LF Datasheet
  • 1: $2.68590

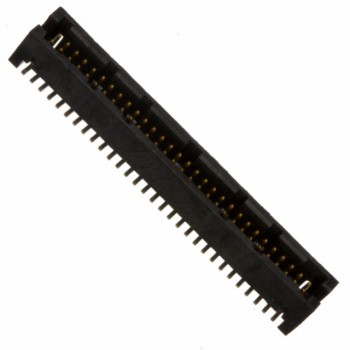

87409-130LF
