In Stock: 185

Can ship immediately

Pricing:
  • 1$2.68964
  • 250$2.44512

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.290" (7.37mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:-
  • Insulation Height:0.250" (6.35mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


1718144009

CONN HEADER R/A 9POS 3.96MM

1718144009 Datasheet
  • 1: $2.68975
  • 600: $2.61290

399-10-121-10-009101

CONN HEADER R/A 21POS 2.54MM

399-10-121-10-009101 Datasheet
  • 1: $2.68976
  • 250: $2.34920

4-102972-0-26

CONN HEADER VERT 26POS 2.54MM

4-102972-0-26 Datasheet
  • 1: $2.69000
  • 10: $2.43829
  • 25: $2.28855

4-103777-0-25

CONN HEADER VERT 50POS 2.54MM

4-103777-0-25 Datasheet
  • 1: $2.69000
  • 10: $2.43720
  • 25: $2.28812

4-103777-0-27

CONN HEADER VERT 54POS 2.54MM

4-103777-0-27 Datasheet
  • 1: $2.69000
  • 10: $2.43700
  • 25: $2.28720

4-103328-0-24

CONN HEADER VERT 48POS 2.54MM

4-103328-0-24 Datasheet
  • 1: $2.69000
  • 10: $2.43720
  • 25: $2.28812

4-103322-0-24

CONN HEADER VERT 48POS 2.54MM

4-103322-0-24 Datasheet
  • 1: $2.69000
  • 10: $2.44000
  • 25: $2.29040

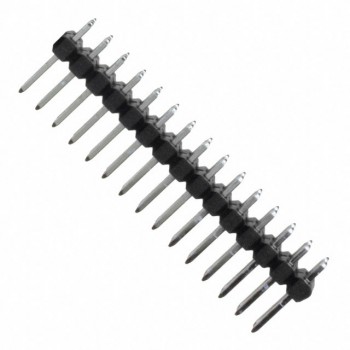

0010897301

CONN HEADER VERT 30POS 2.54MM

0010897301 Datasheet
  • 1: $2.69000
  • 10: $2.58282
  • 25: $2.36762

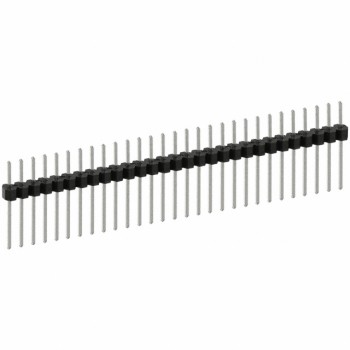

PEC29SADN

CONN HEADER VERT 29POS 2.54MM

PEC29SADN Datasheet
  • 1: $2.69000
  • 10: $2.43900
  • 25: $2.29000

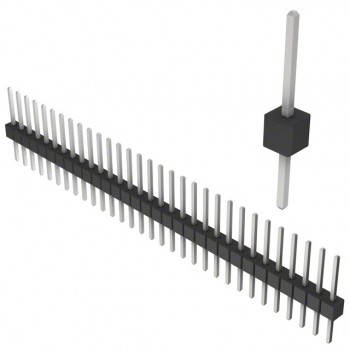

PEC31SFBN
