800-10-026-10-001101

Preci-Dip
In Stock: 171

Can ship immediately

Pricing:
  • 1$2.72736
  • 250$2.38208

Quote It

Technical Details

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.191" (4.85mm)



  • Contact Length - Post:0.121" (3.08mm)
  • Overall Contact Length:0.438" (11.12mm)
  • Insulation Height:0.116" (2.95mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


350-10-125-00-006101

CONN HEADER VERT 25POS 2.54MM

350-10-125-00-006101 Datasheet
  • 1: $2.72741
  • 220: $2.38236

5111374-2

CONN HEADER VERT 14POS 2.54MM

5111374-2 Datasheet
  • 1: $2.72753
  • 576: $2.63465

0702871178

CONN HEADER VERT 66POS 2.54MM

0702871178 Datasheet
  • 1: $2.72774
  • 1000: $2.72774

0741620026

CONN HEADER R/A 26POS 2.54MM

0741620026 Datasheet
  • 1: $2.72803
  • 1215: $2.72803

0010897263

CONN HEADER VERT 26POS 2.54MM

0010897263 Datasheet
  • 1: $2.72804
  • 750: $2.72804

86130262113385E1LF

CONN HEADER R/A 26POS 2.54MM

86130262113385E1LF Datasheet
  • 1: $2.72844
  • 288: $2.64878

10146997-12201LF

MINITEKPWR 5.7 R/A HDR

  • 1: $2.72895

0022282302

CONN HEADER R/A 30POS 2.54MM

0022282302 Datasheet
  • 1: $2.72902
  • 1500: $2.72902

0022282308

CONN HEADER R/A 30POS 2.54MM

0022282308 Datasheet
  • 1: $2.72902
  • 1500: $2.72902

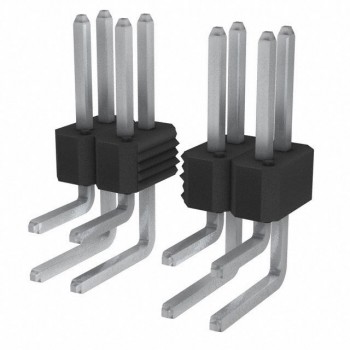

77317-404-68LF
