0717640012

Woodhead - Molex
In Stock: 181

Can ship immediately

Pricing:
  • 1$2.74
  • 10$2.626
  • 25$2.4076
  • 50$2.2982
  • 100$2.1887
  • 250$1.91512
  • 500$1.8604

Quote It

Technical Details

  • Series:C-Grid 71764
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.200" (5.08mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products

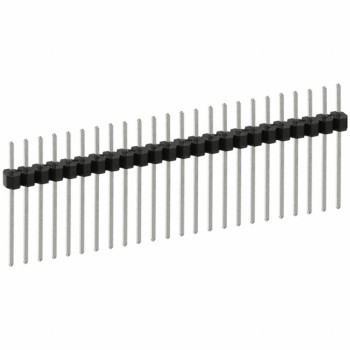

PEC24SAFN

CONN HEADER VERT 24POS 2.54MM

PEC24SAFN Datasheet
  • 1: $2.74000
  • 10: $2.63000
  • 25: $2.41120

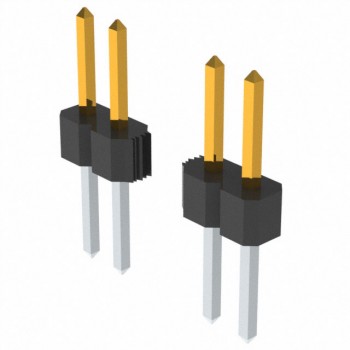

PBC31SABN

CONN HEADER VERT 31POS 2.54MM

PBC31SABN Datasheet
  • 1: $2.74000
  • 10: $2.62900
  • 25: $2.40960

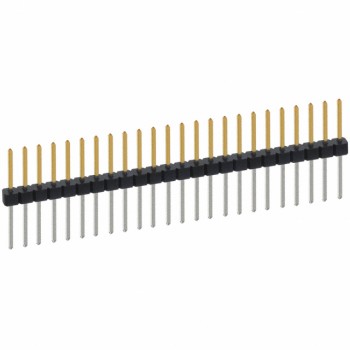

PBC24SFCN

CONN HEADER VERT 24POS 2.54MM

PBC24SFCN Datasheet
  • 1: $2.74000
  • 10: $2.63000
  • 25: $2.41120

PEC35DAAN

CONN HEADER VERT 70POS 2.54MM

PEC35DAAN Datasheet
  • 1: $2.74000
  • 10: $2.63200
  • 25: $2.41280

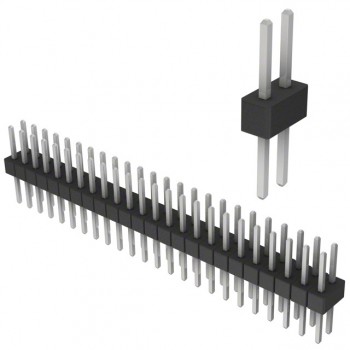

PEC24DABN

CONN HEADER VERT 48POS 2.54MM

PEC24DABN Datasheet
  • 1: $2.74000
  • 10: $2.63000
  • 25: $2.41120

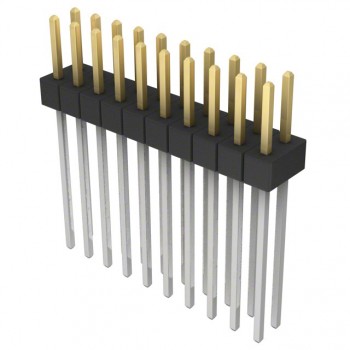

PBC10DAFN

CONN HEADER VERT 20POS 2.54MM

PBC10DAFN Datasheet
  • 1: $2.74000
  • 10: $2.63200
  • 25: $2.41280

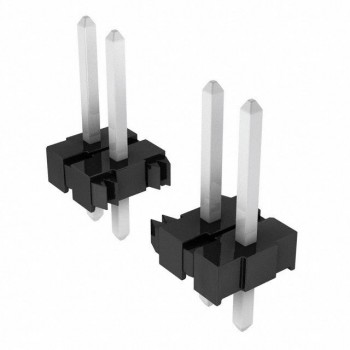

0026481220
