356-V3-113-00-014101

Preci-Dip
In Stock: 124

Can ship immediately

Pricing:
  • 1$2.745
  • 220$2.39755

Quote It

Technical Details

  • Series:356
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:13
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.378" (9.60mm)
  • Insulation Height:0.116" (2.95mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Bronze
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


1719771208

SL LCP RTA HDR ASY PEG SMT 30AU

  • 1: $2.74540

0444990073

CONN HEADER R/A 6POS 4.2MM

0444990073 Datasheet
  • 1: $2.74550
  • 2720: $2.61482

4-2842249-4

44P,2MM,SHRD HDR,DRRT,0.38AU,TB

  • 1: $2.74558

4-2842167-4

44P,2MM,SHRD HDR,DRRT,0.38AU,TB

  • 1: $2.74558

GRPB382VWVN-RC

CONN HEADER VERT 76POS 1.27MM

GRPB382VWVN-RC Datasheet
  • 1: $2.74572
  • 1000: $2.74572

0015913093

CONN HEADER SMD R/A 9POS 2.54MM

0015913093 Datasheet
  • 1: $2.74628
  • 600: $2.66782

350-10-121-01-666101

CONN HEADER VERT 21POS 2.54MM

350-10-121-01-666101 Datasheet
  • 1: $2.74700
  • 220: $2.39936

351-10-113-00-005101

CONN HEADER VERT 13POS 2.54MM

351-10-113-00-005101 Datasheet
  • 1: $2.74700
  • 220: $2.39936

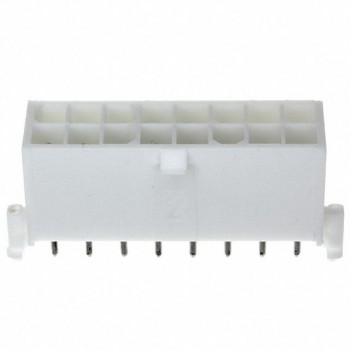

794075-1
