804-10-012-10-002000

Mill-Max
In Stock: 170

Can ship immediately

Pricing:
  • 1$2.75
  • 10$2.63938
  • 25$2.41959
  • 50$2.30959
  • 100$2.19959
  • 250$1.92463
  • 500$1.86965

Quote It

Technical Details

  • Series:804
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.133" (3.38mm)
  • Overall Contact Length:0.400" (10.16mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


929400-01-33

CONN HEADER VERT 33POS 2.54MM

929400-01-33 Datasheet
  • 1: $2.75000
  • 10: $2.64000
  • 25: $2.42000

929647-09-09-I

CONN HEADER VERT 9POS 2.54MM

929647-09-09-I Datasheet
  • 1: $2.75000
  • 10: $2.64400
  • 25: $2.42360

929647-03-09-I

CONN HEADER VERT 9POS 2.54MM

929647-03-09-I Datasheet
  • 1: $2.75000
  • 10: $2.64400
  • 25: $2.42360

929647-04-09-I

CONN HEADER VERT 9POS 2.54MM

929647-04-09-I Datasheet
  • 1: $2.75000
  • 10: $2.64400
  • 25: $2.42360

929647-05-09-I

CONN HEADER VERT 9POS 2.54MM

929647-05-09-I Datasheet
  • 1: $2.75000
  • 10: $2.64400
  • 25: $2.42360

929647-07-09-I

CONN HEADER VERT 9POS 2.54MM

929647-07-09-I Datasheet
  • 1: $2.75000
  • 10: $2.64400
  • 25: $2.42360

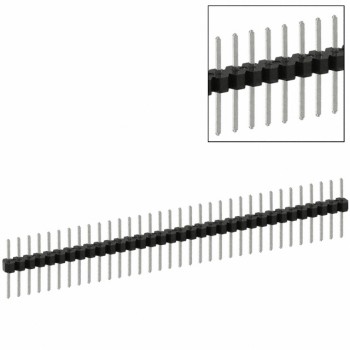

PEC34SACN

CONN HEADER VERT 34POS 2.54MM

PEC34SACN Datasheet
  • 1: $2.75000
  • 10: $2.63800
  • 25: $2.41840

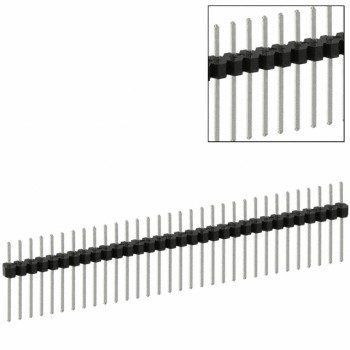

PEC32SADN

CONN HEADER VERT 32POS 2.54MM

PEC32SADN Datasheet
  • 1: $2.75000
  • 10: $2.63700
  • 25: $2.41720

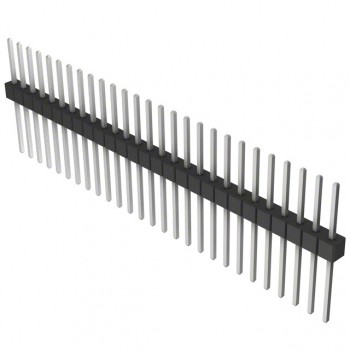

PEC27SFDN
