In Stock: 120

Can ship immediately

Pricing:
  • 1$2.75122
  • 650$2.65752

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.639" (16.23mm)
  • Insulation Height:0.549" (13.94mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:-
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:250VAC

Related Products


892-18-026-10-004101

CONN HEADER VERT 26POS 2.54MM

892-18-026-10-004101 Datasheet
  • 1: $2.75138
  • 210: $2.46843

892-18-026-20-001101

CONN HEADER R/A 26POS 2.54MM

892-18-026-20-001101 Datasheet
  • 1: $2.75138
  • 210: $2.46843

4-794628-2

CONN HEADER SMD R/A 12POS 3MM

4-794628-2 Datasheet
  • 1: $2.75142
  • 450: $2.75142

1-103638-7

CONN HEADER VERT 18POS 2.54MM

1-103638-7 Datasheet
  • 1: $2.75169
  • 836: $2.75169

3-2842284-8

38P,2MM,SHRD HDR,DRVT,0.76AU,TB

  • 1: $2.75233

350-80-130-00-019101

CONN HEADER VERT 30POS 2.54MM

350-80-130-00-019101 Datasheet
  • 1: $2.75240
  • 200: $2.53470

399-80-130-10-009101

CONN HEADER R/A 30POS 2.54MM

399-80-130-10-009101 Datasheet
  • 1: $2.75240
  • 200: $2.53470

SBH51-LPSE-D10-SM-BK

CONN HEADER SMD 20POS 1MM

SBH51-LPSE-D10-SM-BK Datasheet
  • 1: $2.75245
  • 53: $2.75245

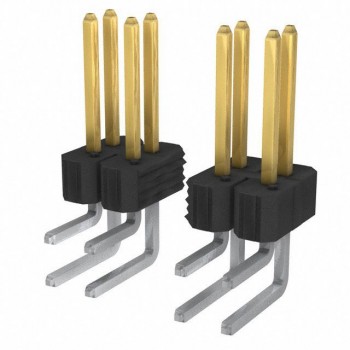

68022-170HLF
