951210-4620-AR-PR

3M
In Stock: 194

Can ship immediately

Pricing:
  • 1$2.78

Quote It

Technical Details

  • Series:951
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.175" (4.45mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


929500-01-35

CONN HEADER R/A 35POS 2.54MM

929500-01-35 Datasheet
  • 1: $2.78000
  • 10: $2.66600
  • 25: $2.44360

4-102972-0-29

CONN HEADER VERT 29POS 2.54MM

4-102972-0-29 Datasheet
  • 1: $2.78000
  • 10: $2.66750
  • 25: $2.44467

PBC29SACN

CONN HEADER VERT 29POS 2.54MM

PBC29SACN Datasheet
  • 1: $2.78000
  • 10: $2.66800
  • 25: $2.44560

PEC34SBBN

CONN HEADER R/A 34POS 2.54MM

PEC34SBBN Datasheet
  • 1: $2.78000
  • 10: $2.66600
  • 25: $2.44360

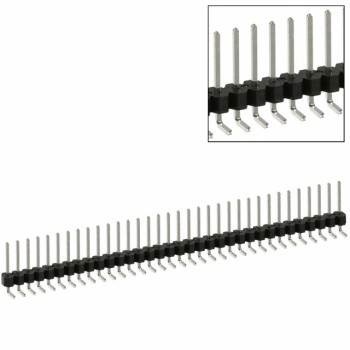

PEC34SGAN
