In Stock: 136

Can ship immediately

Pricing:
  • 1$2.78614
  • 2,000$2.78614

Quote It

Technical Details

  • Series:Quickie™
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.331" (8.40mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


890-18-034-10-003101

CONN HEADER VERT 34POS 2.54MM

890-18-034-10-003101 Datasheet
  • 1: $2.78616
  • 250: $2.49960

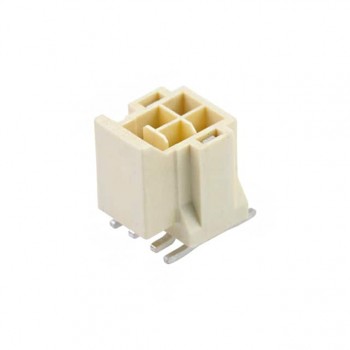

1054292404

NANO-FIT HDR SMT VT DLR 4CKT 30A

  • 1: $2.78652

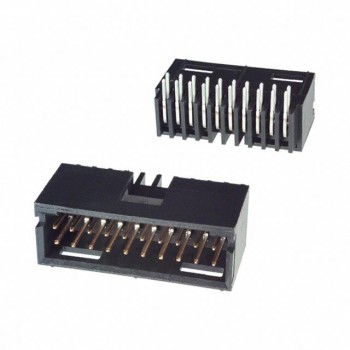

5-102570-8
