800-10-017-10-001000

Mill-Max
In Stock: 196

Can ship immediately

Pricing:
  • 1$2.79
  • 10$2.68277
  • 25$2.45936
  • 50$2.34776
  • 100$2.23585
  • 250$1.95641
  • 500$1.90051

Quote It

Technical Details

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.195" (4.95mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.438" (11.12mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


4-103321-0-39

CONN HEADER VERT 39POS 2.54MM

4-103321-0-39 Datasheet
  • 1: $2.79000
  • 10: $2.68186
  • 25: $2.45866

4-103777-0-28

CONN HEADER VERT 56POS 2.54MM

4-103777-0-28 Datasheet
  • 1: $2.79000
  • 10: $2.67645
  • 25: $2.45347

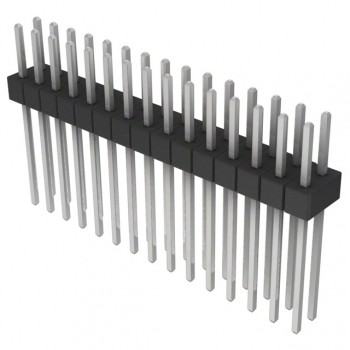

PEC15DAEN
