802-10-018-10-002000

Mill-Max
In Stock: 124

Can ship immediately

Pricing:
  • 1$2.79
  • 10$2.68277
  • 25$2.45895
  • 50$2.34714
  • 100$2.23533
  • 250$1.95591
  • 500$1.90001

Quote It

Technical Details

  • Series:802
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.385" (9.77mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


802-80-040-20-001101

CONN HEADER R/A 40POS 2.54MM

802-80-040-20-001101 Datasheet
  • 1: $2.79003
  • 330: $2.56924

351-80-111-00-016101

CONN HEADER VERT 11POS 2.54MM

351-80-111-00-016101 Datasheet
  • 1: $2.79080
  • 200: $2.57025

351-10-119-00-003101

CONN HEADER VERT 19POS 2.54MM

351-10-119-00-003101 Datasheet
  • 1: $2.79100
  • 210: $2.43795

800-V3-010-6B-002101

CONN HEADER VERT 10POS 2.54MM

800-V3-010-6B-002101 Datasheet
  • 1: $2.79100
  • 210: $2.43795

802-V3-010-6B-002101

CONN HEADER VERT 10POS 2.54MM

802-V3-010-6B-002101 Datasheet
  • 1: $2.79100
  • 210: $2.43795

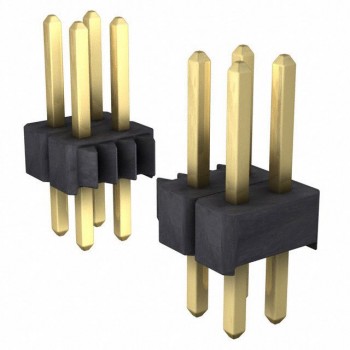

882-70-072-10-001101

CONN HEADER VERT 72POS 2MM

882-70-072-10-001101 Datasheet
  • 1: $2.79140
  • 200: $2.53065

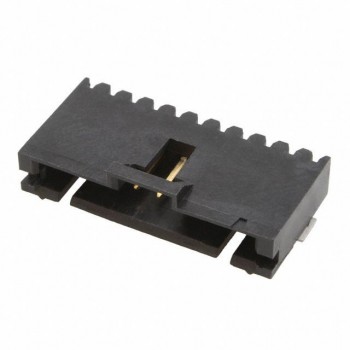

5-147323-8
