SMH100-LPSE-D12-ST-BK

Sullins Connector Solutions
In Stock: 166

Can ship immediately

Pricing:
  • 1$2.7927
  • 1,000$2.7927

Quote It

Technical Details

  • Series:SMH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.071" (1.80mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:0.209" (5.30mm)
  • Insulation Height:0.039" (1.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


SMH150-LPSE-D12-ST-BK

CONN HEADER VERT 24POS 1MM

SMH150-LPSE-D12-ST-BK Datasheet
  • 1: $2.79270
  • 1000: $2.79270

1-146293-6

CONN HEADER VERT 16POS 2.54MM

1-146293-6 Datasheet
  • 1: $2.79311
  • 2000: $2.60795

6-146285-6

CONN HEADER VERT 16POS 2.54MM

6-146285-6 Datasheet
  • 1: $2.79366
  • 2000: $2.58313

98423-F61-16ULF

CONN HEADER R/A 32POS 2MM

98423-F61-16ULF Datasheet
  • 1: $2.79421
  • 252: $2.58351

53612-S40-8

CONN HEADER SMD 40POS 2.54MM

53612-S40-8 Datasheet
  • 1: $2.79423
  • 400: $2.79423

10075024-G01-22ULF

CONN HEADER VERT 44POS 2MM

10075024-G01-22ULF Datasheet
  • 1: $2.79423
  • 260: $2.58355

57202-F51-21LF

CONN HEADER SMD 42POS 2MM

57202-F51-21LF Datasheet
  • 1: $2.79423
  • 300: $2.58354

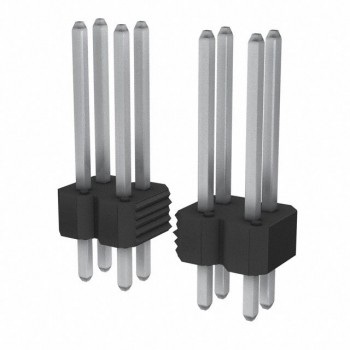

77313-452-72LF
