1054312206

Woodhead - Molex
In Stock: 154

Can ship immediately

Pricing:
  • 1$2.82695

Quote It

Technical Details

  • Series:Nano-Fit 105431
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.382" (9.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Pick and Place, Solder Retention
  • Operating Temperature:-40°C ~ 115°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4A
  • Voltage Rating:250VAC

Related Products


0705750045

CONN HEADER R/A 11POS 2.54MM

0705750045 Datasheet
  • 1: $2.82711
  • 11520: $2.82711

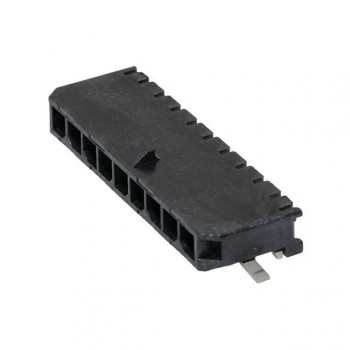

0436500914

CONN HEADER SMD R/A 9POS 3MM

0436500914 Datasheet
  • 1: $2.82744
  • 1600: $2.82744

0741621010

CONN HEADER R/A 10POS 2.54MM

0741621010 Datasheet
  • 1: $2.82794
  • 1458: $2.82794

SBH31-NBPB-D30-RA-BK

CONN HEADER R/A 60POS 1.27MM

SBH31-NBPB-D30-RA-BK Datasheet
  • 1: $2.82794
  • 1000: $ 2.82794

SBH31-NBPB-D30-SM-BK

CONN HEADER SMD 60POS 1.27MM

SBH31-NBPB-D30-SM-BK Datasheet
  • 1: $2.82794
  • 1000: $2.82794

SBH31-NBPB-D30-SP-BK

CONN HEADER SMD 60POS 1.27MM

SBH31-NBPB-D30-SP-BK Datasheet
  • 1: $2.82794
  • 1000: $2.82794

SBH31-NBPB-D40-ST-BK

CONN HEADER VERT 80POS 1.27MM

SBH31-NBPB-D40-ST-BK Datasheet
  • 1: $2.82794
  • 1000: $2.82794

0428193234

CONN HEADER VERT 3POS 10MM

0428193234 Datasheet
  • 1: $2.82823
  • 1296: $2.82823

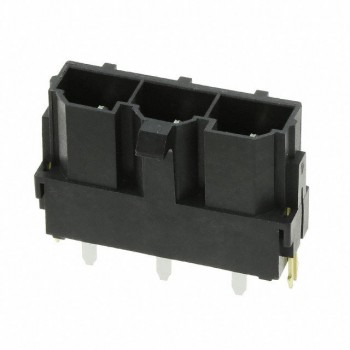

0428193244

CONN HEADER VERT 3POS 10MM

0428193244 Datasheet
  • 1: $2.82823
  • 1296: $2.82823

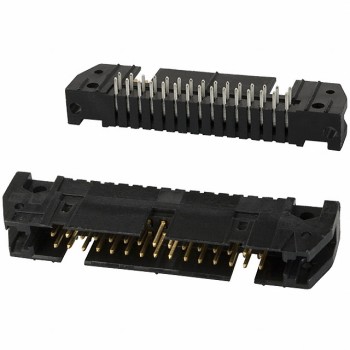

102159-7
