In Stock: 195

Can ship immediately

Pricing:
  • 1$2.84398
  • 825$2.62965

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:40
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.320" (8.13mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:30VAC

Related Products


350-80-131-00-019101

CONN HEADER VERT 31POS 2.54MM

350-80-131-00-019101 Datasheet
  • 1: $2.84400
  • 200: $2.61915

399-80-131-10-009101

CONN HEADER R/A 31POS 2.54MM

399-80-131-10-009101 Datasheet
  • 1: $2.84400
  • 200: $2.61915

350-80-132-00-106101

CONN HEADER SMD 32POS 2.54MM

350-80-132-00-106101 Datasheet
  • 1: $2.84460
  • 200: $2.61975

350-80-132-00-206101

CONN HEADER SMD R/A 32POS 2.54MM

350-80-132-00-206101 Datasheet
  • 1: $2.84460
  • 200: $2.61975

450-80-232-00-106101

CONN HEADER SMD 32POS 2.54MM

450-80-232-00-106101 Datasheet
  • 1: $2.84460
  • 200: $2.61975

0741621026

CONN HEADER R/A 26POS 2.54MM

0741621026 Datasheet
  • 1: $2.84490
  • 1053: $2.84490

NRPN302MAMP-RC

CONN HEADER SMD 60POS 2MM

NRPN302MAMP-RC Datasheet
  • 1: $2.84490
  • 1000: $ 2.84490

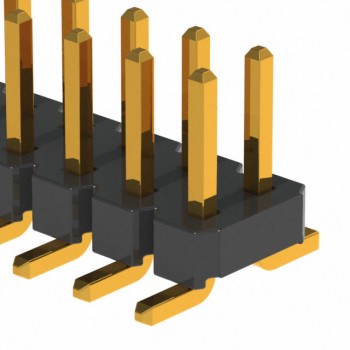

NRPN302MAMS-RC
