In Stock: 189

Can ship immediately

Pricing:
  • 1$2.85917
  • 300$2.64373

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:66
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.268" (6.80mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.190" (4.83mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77317-412-66LF

CONN HEADER R/A 66POS 2.54MM

77317-412-66LF Datasheet
  • 1: $2.85917
  • 300: $2.64373

77317-812-66LF

CONN HEADER R/A 66POS 2.54MM

77317-812-66LF Datasheet
  • 1: $2.85917
  • 300: $2.64373

98414-G08-30LF

CONN HEADER VERT 30POS 2MM

98414-G08-30LF Datasheet
  • 1: $2.85917
  • 300: $2.64373

98414-S06-30LF

CONN HEADER VERT 30POS 2MM

98414-S06-30LF Datasheet
  • 1: $2.85917
  • 300: $2.64373

98414-S08-30LF

CONN HEADER VERT 30POS 2MM

98414-S08-30LF Datasheet
  • 1: $2.85917
  • 300: $2.64373

0901200794

CONN HEADER VERT 34POS 2.54MM

0901200794 Datasheet
  • 1: $2.85984
  • 2880: $2.85984

PEC07DAFN

CONN HEADER VERT 14POS 2.54MM

PEC07DAFN Datasheet
  • 1: $2.86000
  • 10: $2.56100
  • 100: $2.10870

PEC33SFBN

CONN HEADER VERT 33POS 2.54MM

PEC33SFBN Datasheet
  • 1: $2.86000
  • 10: $2.74600
  • 25: $2.51680

PBC27SFBN

CONN HEADER VERT 27POS 2.54MM

PBC27SFBN Datasheet
  • 1: $2.86000
  • 10: $2.74300
  • 25: $2.51480

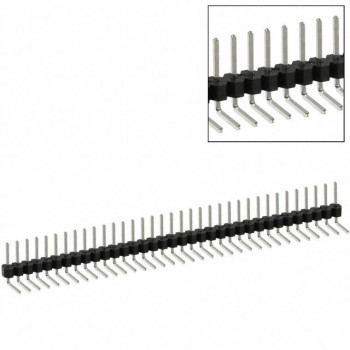

PEC35SBBN
