In Stock: 109

Can ship immediately

Pricing:
  • 1$2.8606
  • 100$2.3144

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.090" (2.29mm)
  • Overall Contact Length:-
  • Insulation Height:0.238" (6.05mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


450-V3-224-00-006101

CONN HEADER VERT 24POS 2.54MM

450-V3-224-00-006101 Datasheet
  • 1: $2.86124
  • 250: $2.49924

0025024012

CONN HEADER VERT 12POS 2.54MM

0025024012 Datasheet
  • 1: $2.86174
  • 2160: $2.86174

10119109-312002LF

CONN HEADER VERT 12POS 2.54MM

10119109-312002LF Datasheet
  • 1: $2.86196
  • 700: $2.86196

10080054-073LF

CONN HEADER VERT 20POS 2.54MM

10080054-073LF Datasheet
  • 1: $2.86196
  • 680: $2.86196

87672-8

CONN HEADER R/A 24POS 2.54MM

87672-8 Datasheet
  • 1: $2.86200
  • 2560: $2.52450

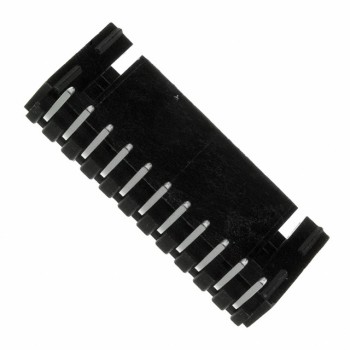

0705530115
