In Stock: 140

Can ship immediately

Pricing:
  • 1$2.87789
  • 800$2.66104

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:42
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.079" (2.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:Pick and Place
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


69155-026LF

CONN HEADER R/A 26POS 2.54MM

69155-026LF Datasheet
  • 1: $2.87866
  • 800: $2.87866

350-80-142-01-899101

CONN HEADER SMD 42POS 2.54MM

350-80-142-01-899101 Datasheet
  • 1: $2.87900
  • 200: $2.65125

450-80-242-01-899101

CONN HEADER SMD 42POS 2.54MM

450-80-242-01-899101 Datasheet
  • 1: $2.87900
  • 200: $2.65125

1-2029037-0

CONN HEADER VERT 10POS 3MM

1-2029037-0 Datasheet
  • 1: $2.87932
  • 4704: $2.87932

0741640310

CONN HEADER R/A 10POS 2.54MM

0741640310 Datasheet
  • 1: $2.87999
  • 1458: $2.87999

PBC04DGBN

CONN HEADER R/A 8POS 2.54MM

PBC04DGBN Datasheet
  • 1: $2.88000
  • 10: $2.58100
  • 100: $2.12540

159220-6002

CONN HEADER VERT 20POS 2MM

159220-6002 Datasheet
  • 1: $2.88000
  • 10: $2.61535
  • 324: $2.02824

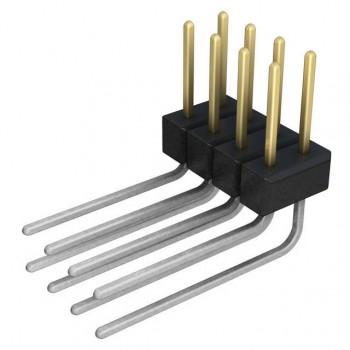

PBC04DBDN

CONN HEADER R/A 8POS 2.54MM

PBC04DBDN Datasheet
  • 1: $2.88000
  • 10: $2.57400
  • 100: $2.11940

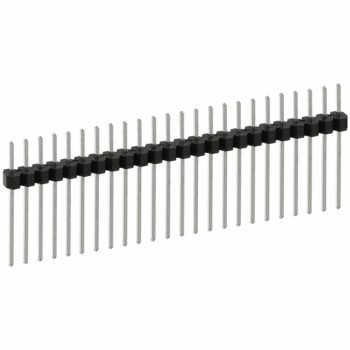

PEC24SAGN
