In Stock: 113

Can ship immediately

Pricing:
  • 1$2.88322
  • 1,000$2.66594

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0878333421

CONN HEADER R/A 34POS 2MM

0878333421 Datasheet
  • 1: $2.88333
  • 1400: $2.75384

0015910600

CONN HEADER SMD 60POS 2.54MM

0015910600 Datasheet
  • 1: $2.88347
  • 1512: $2.78404

800-V3-027-12-422101

CONN HEADER VERT 13POS 5.08MM

  • 1: $2.88362
  • 210: $2.51876

6-1375549-3

CONN HEADER SMD 14POS 2.54MM

6-1375549-3 Datasheet
  • 1: $2.88365
  • 800: $2.71813

350-80-134-01-666101

CONN HEADER VERT 34POS 2.54MM

350-80-134-01-666101 Datasheet
  • 1: $2.88400
  • 200: $2.65590

662304135922

CONN HEADER SMD 4POS 3MM

  • 1: $2.88420
  • 250: $2.88420
  • 500: $2.35980

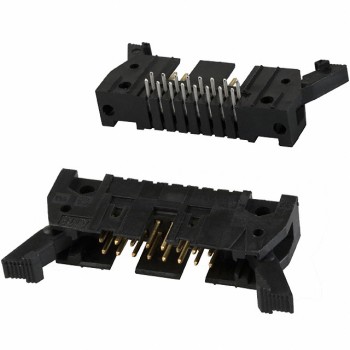

499913-3

CONN HEADER R/A 16POS 2.54MM

499913-3 Datasheet
  • 1: $2.88433
  • 504: $2.61407

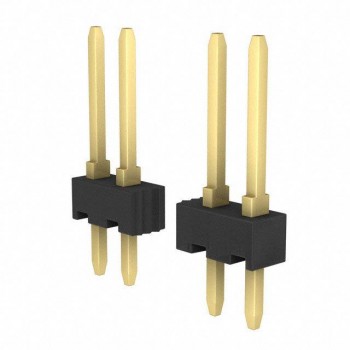

87220-9
