In Stock: 170

Can ship immediately

Pricing:
  • 1$2.89
  • 10$2.77527
  • 25$2.5445
  • 50$2.42868
  • 100$2.31308
  • 250$2.024
  • 500$1.96615

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:32
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.440" (11.18mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


4-103777-0-29

CONN HEADER VERT 58POS 2.54MM

4-103777-0-29 Datasheet
  • 1: $2.89000
  • 10: $2.77527
  • 25: $2.54363

4-102973-0-16

CONN HEADER VERT 32POS 2.54MM

4-102973-0-16 Datasheet
  • 1: $2.89000
  • 10: $2.77743
  • 25: $2.54623

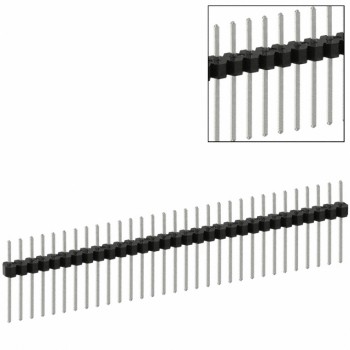

PEC31SAEN

CONN HEADER VERT 31POS 2.54MM

PEC31SAEN Datasheet
  • 1: $2.89000
  • 10: $2.77800
  • 25: $2.54600

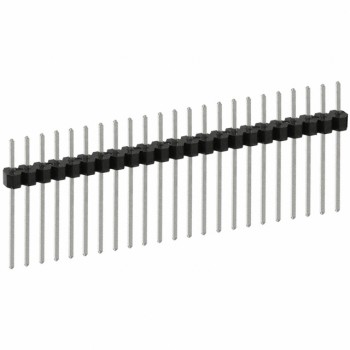

PEC23SAHN

CONN HEADER VERT 23POS 2.54MM

PEC23SAHN Datasheet
  • 1: $2.89000
  • 10: $2.77800
  • 25: $2.54680

PBC21SAGN

CONN HEADER VERT 21POS 2.54MM

PBC21SAGN Datasheet
  • 1: $2.89000
  • 10: $2.77200
  • 25: $2.54120

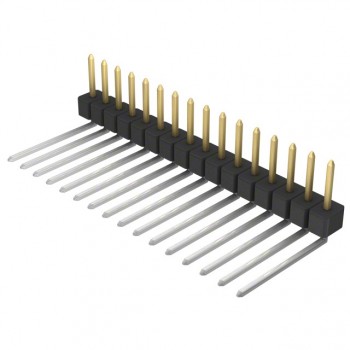

PBC16SBEN
