In Stock: 155

Can ship immediately

Pricing:
  • 1$2.90541
  • 900$2.73863

Quote It

Technical Details

  • Series:AMPMODU MTE
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.535" (13.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


802-V3-020-30-001101

CONN HEADER SMD 20POS 2.54MM

802-V3-020-30-001101 Datasheet
  • 1: $2.90570
  • 300: $2.53813

65496-001

CONN HEADER R/A 10POS 2.54MM

65496-001 Datasheet
  • 1: $2.90584
  • 1600: $2.90584

0440680034

CONN HEADER VERT 4POS 4.2MM

0440680034 Datasheet
  • 1: $2.90622
  • 680: $2.82319

350-80-131-00-024101

CONN HEADER VERT 31POS 2.54MM

350-80-131-00-024101 Datasheet
  • 1: $2.90721
  • 190: $2.67732

75168-301-36LF

CONN HEADER R/A 36POS 2.54MM

  • 1: $2.90725

1719771013

SL LCP RTA HDR ASY PEG SMT MTIN

  • 1: $2.90725

800-V3-020-30-001101

CONN HEADER SMD 20POS 2.54MM

800-V3-020-30-001101 Datasheet
  • 1: $2.90727
  • 300: $2.53937

892-70-070-10-003101

CONN HEADER VERT 70POS 2.54MM

892-70-070-10-003101 Datasheet
  • 1: $2.90740
  • 200: $2.63570

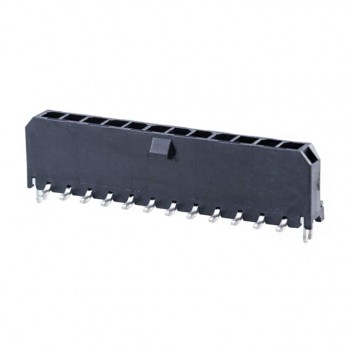

0436501223
