800-10-019-10-002000

Mill-Max
In Stock: 147

Can ship immediately

Pricing:
  • 1$2.92
  • 10$2.79885
  • 25$2.56546
  • 50$2.44866
  • 100$2.33207
  • 250$2.04056
  • 500$1.98227

Quote It

Technical Details

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:19
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.385" (9.77mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


929834-02-29

CONN HEADER VERT 29POS 2.54MM

929834-02-29 Datasheet
  • 1: $2.92000
  • 10: $2.80300
  • 25: $2.56920

929834-03-29

CONN HEADER VERT 29POS 2.54MM

929834-03-29 Datasheet
  • 1: $2.92000
  • 10: $2.80300
  • 25: $2.56920

929834-04-29

CONN HEADER VERT 29POS 2.54MM

929834-04-29 Datasheet
  • 1: $2.92000
  • 10: $2.80300
  • 25: $2.56920

929834-05-29

CONN HEADER VERT 29POS 2.54MM

929834-05-29 Datasheet
  • 1: $2.92000
  • 10: $2.80300
  • 25: $2.56920

929834-07-29

CONN HEADER VERT 29POS 2.54MM

929834-07-29 Datasheet
  • 1: $2.92000
  • 10: $2.80300
  • 25: $2.56920

929400-01-35

CONN HEADER VERT 35POS 2.54MM

929400-01-35 Datasheet
  • 1: $2.92000
  • 10: $2.80000
  • 25: $2.56680

929550-01-14-I

CONN HEADER R/A 14POS 2.54MM

929550-01-14-I Datasheet
  • 1: $2.92000
  • 10: $2.80400
  • 25: $2.57080

4-103322-0-26

CONN HEADER VERT 52POS 2.54MM

4-103322-0-26 Datasheet
  • 1: $2.92000
  • 10: $2.79996
  • 25: $2.56700

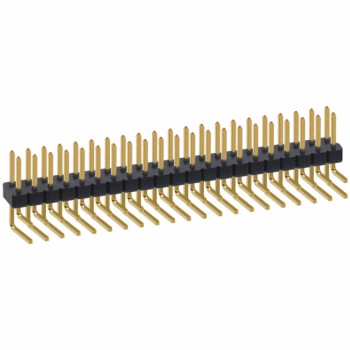

NRPN212PARN-RC

CONN HEADER R/A 42POS 2MM

NRPN212PARN-RC Datasheet
  • 1: $2.92000
  • 10: $2.80800
  • 25: $2.57400

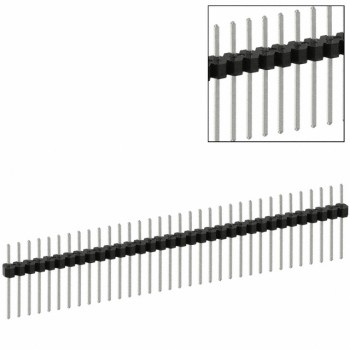

PEC34SADN
