894-80-060-10-003101

Preci-Dip
In Stock: 116

Can ship immediately

Pricing:
  • 1$2.92442
  • 190$2.69305

Quote It

Technical Details

  • Series:894
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:60
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.335" (8.51mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.553" (14.04mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


M80-8671405

DATAMATE L-TEK DIL MALE VERTICAL

  • 1: $2.92465
  • 1008: $2.69990

0015800183

CONN HEADER VERT 18POS 2.54MM

0015800183 Datasheet
  • 1: $2.92474
  • 1440: $2.92474

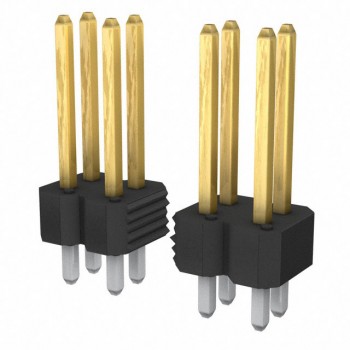

77313-115-64LF
